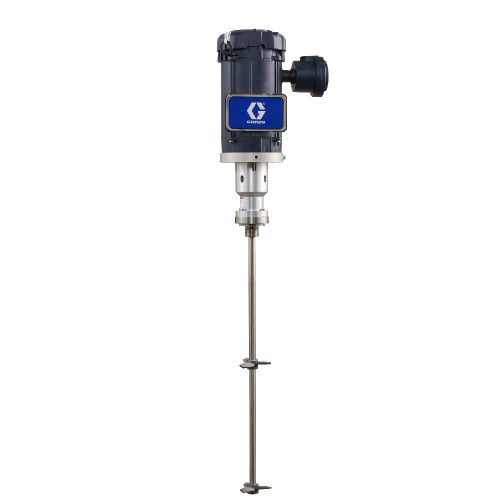

GRACO 25C470 - Pressure Tank Agitator Assembly, 10 gallon, UL

Low shear, electric, direct drive agitator mixes and maintains suspension of industrial coatings stored in fluid tanks.

Additional Specifications

• Frequency: 60 Hz
• Drive Type: Direct Drive
• Motor Type: UL Listed Explosion Proof Inverter Duty Motor
• Requires Vfd: Variable frequency drive (VFD) required for speed control

Specifications

Compatible Equipment

• Electric Direct Drive Agitator systems
• pressure tank applications

Related Parts

• 25C462 - Pressure Tank Agitator Assembly (5 Gallon)
• 25C471 - Pressure Tank Agitator Assembly (15 Gallon)
• 25C472 - Pressure Tank Agitator Assembly (10 Gallon) ATEX
• 25C465 - Pressure Tank Agitator Assembly (5 Gallon) ATEX
• 25C473 - Pressure Tank Agitator Assembly (15 Gallon) ATEX

Part appears in 60 Hz Direct Drive section. Related parts include other pressure tank agitator assemblies in 5 gallon (25C462, 25C465) and 15 gallon (25C471, 25C473) capacities for both 60 Hz and 50 Hz applications. This model includes a shaft and impeller, but does not include pressure tanks. Model is for replacement of existing air motor driven pressure tank agitators. See manual 308369 for corresponding pressure tank part numbers, to be ordered separately. Has UL and CSA motor hazardous location approvals. Referenced in pressure tank installation instructions on page 22 for parts identification. Used with gasket (21) and bearing housing/flange assembly on pressure tank cover with lock washer (32) and nut (22).

Reference Manuals

• 3A4030 (Page 163) Intelligent Paint Kitchen
• 3A4553 (Page 3) 3A4553 EN-J, Manual, Electric Direct Drive Agitators
