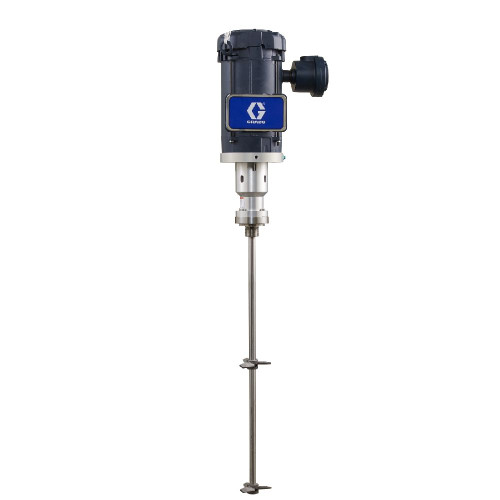

GRACO 25C471 - Pressure Tank Agitator Assembly, 15 gallon, UL
Low shear, electric, direct drive agitator (UL listed) mixes and maintains suspension of industrial coatings stored in fluid tanks. This model includes a shaft and impeller, but no pressure tank. It can replace existing air motor driven pressure tank agitators.
Additional Specifications
Specifications
| For Use With | 15 Gallon (57 Litre) Pressure Tank |
| Includes | Shaft, Impeller |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Speed (RPM) | 500 |
| Maximum Viscosity (cP) | 300 |
| Minimum Operating Temperature (°F) | 32 |
| Motor Type | Electric |
| Power Rating (HP) | 0.75 |
| Power Rating (kW) | 0.37 |
| Type | Agitator |
| Weight Range (lb) | 55-65 |
| Wetted Material | Stainless Steel |
Compatible Equipment
Related Parts
Part of 60 Hz Direct Drive agitator family. Related parts include 5 gallon (25C462/25C465) and 10 gallon (25C470/25C472) pressure tank assemblies. These models include a shaft and impeller, but do not include pressure tanks. These models are for the replacement of existing air motor driven pressure tank agitators. Requires power from a variable frequency drive (VFD) to control speed and is not to be used without one. See manual 3A4793 for a listing of part numbers for related VFD controls, to be ordered separately. See manual 308369 for corresponding pressure tank part numbers, to be ordered separately. Part number appears in header as one of the models for this pressure tank mount assembly. Detailed specifications and parts breakdown not provided on this page.
Reference Manuals
GRACO 25C471 - Pressure Tank Agitator Assembly, 15 gallon, UL
Low shear, electric, direct drive agitator (UL listed) mixes and maintains suspension of industrial coatings stored in fluid tanks. This model includes a shaft and impeller, but no pressure tank. It can replace existing air motor driven pressure tank agitators.
Additional Specifications
Specifications
| For Use With | 15 Gallon (57 Litre) Pressure Tank |
| Includes | Shaft, Impeller |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Speed (RPM) | 500 |
| Maximum Viscosity (cP) | 300 |
| Minimum Operating Temperature (°F) | 32 |
| Motor Type | Electric |
| Power Rating (HP) | 0.75 |
| Power Rating (kW) | 0.37 |
| Type | Agitator |
| Weight Range (lb) | 55-65 |
| Wetted Material | Stainless Steel |
Compatible Equipment
Related Parts
Part of 60 Hz Direct Drive agitator family. Related parts include 5 gallon (25C462/25C465) and 10 gallon (25C470/25C472) pressure tank assemblies. These models include a shaft and impeller, but do not include pressure tanks. These models are for the replacement of existing air motor driven pressure tank agitators. Requires power from a variable frequency drive (VFD) to control speed and is not to be used without one. See manual 3A4793 for a listing of part numbers for related VFD controls, to be ordered separately. See manual 308369 for corresponding pressure tank part numbers, to be ordered separately. Part number appears in header as one of the models for this pressure tank mount assembly. Detailed specifications and parts breakdown not provided on this page.
Reference Manuals
