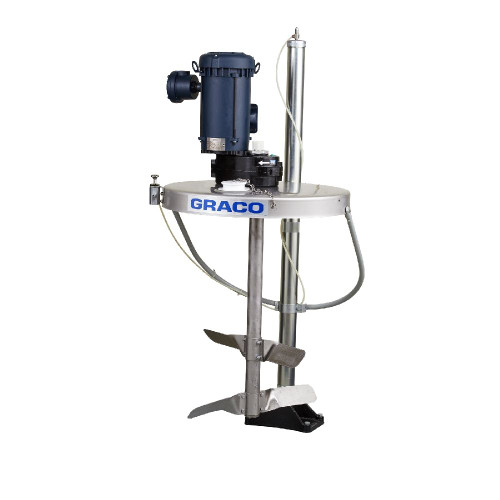

GRACO 25C486 - Electric Back Gear Drum Agitator w/ siphon, shaft & blades, UL, drum cover & elevator not included

Heavy-duty, electric, back-geared agitator (UL listed) mixes and maintains suspension of industrial coatings stored in 55 gallon (208 liter) drums.

Additional Specifications

• Frequency: 60 Hz
• Drive Type: Back Gear
• Motor Required: 25C483 UL Listed Explosion Proof Inverter Duty Motor
• Vfd Required: Variable frequency drive (VFD) required - see manual 3A4793
• Motor Hazardous Location Approvals: UL Listed and CSA certified
• Certification: UL listed

Specifications

Compatible Equipment

• Electric Back-Gear Agitator systems
• Models 25C485, 25C486, 25C487, 25C488

Related Parts

• 25C483
• 25C485
• 25C374
• 25C451
• 25C483 - Base Model Explosion Proof Inverter Duty Motor
• 25C484 - Back-Gear Drive Only with Ground Wire Kit
• 25C485 - Agitator (basic)
• 25C374 - Agitator with Drum Cover and Elevator
• 25C451 - Agitator with Drum Cover, Elevator, and Siphon
• 25C487

Kit Contents

• Shaft and Blades
• Siphon

This is a 60 Hz back gear agitator model that includes a siphon feature Part of UL Listed Explosion Proof Inverter Duty Motor family. Requires power from variable frequency drive (VFD) to control speed and is not to be used without one. Drum Cover and Elevator not included - available separately in other models. This is an agitator with or without siphon. The diagram shows the complete assembly breakdown with numbered parts. Drum cover and elevator are not included with this model.

Reference Manuals

• 3A4030 (Page 163)
• 3A4548 (Page 2)
