GRACO 25C660 - Husky 2150 SS Pump, Vertical Outlet Port, SS Center Section, SS Seats, PTFE Balls &
Price: with strikethrough $14,520.00
Retail Price:
Sale Price: Price $12,445.71
Item #: 25C658
Price: with strikethrough $14,960.00
Retail Price:
Sale Price: Price $12,822.85
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.
Price: with strikethrough $14,520.00
Retail Price:
Sale Price: Price $12,445.71
Price: with strikethrough $11,640.00
Retail Price:
Sale Price: Price $9,977.14
Price: with strikethrough $8,730.00
Retail Price:
Sale Price: Price $7,700.42
Price: with strikethrough $11,990.00
Retail Price:
Sale Price: Price $10,277.14

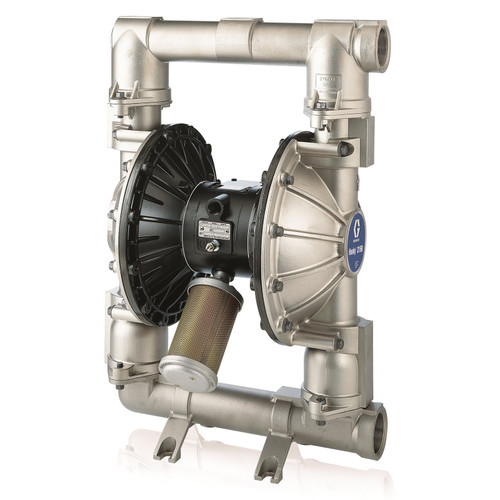

GRACO 25C658 - Husky 2150 Ss Pump, Horizontal Outlet Port, Stainless Steel Center Section, Stainless Steel Seats, PTFE Balls & Po Diaphragm
Stainless Steel Pump with SST Center Section, Flanged Manifold Ports (Horizontal Outlet), and overmolded diaphragms
The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
Additional Specifications
Specifications
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | PTFE |
| Center Section Material | Stainless Steel |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer |
| Connection Type | Center Flange ANSI/DIN, Horizontal Outlet |
| Diaphragm Material | PTFE Overmold |
| Fluid Inlet Size (in) | 2 |
| Fluid Outlet Size (in) | 2 |
| Fluid Section Material | Stainless Steel |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Maximum Air Consumption (SCFM) | 175 |
| Maximum Air Pressure (MPa) | 0.8 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 145 |
| Maximum Flow Rate (GPM) | 150 |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Operating Temperature (°F) | 200 |
| Maximum Solid Size (in) | 0.25 |
| Power Source | Air |
| Seat Material | Stainless Steel |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 134 |
Compatible Equipment
Related Parts
Part of the Husky pump series with stainless steel construction and flanged manifold ports Model number is marked on pump's serial plate. First digit is always D for Husky diaphragm pumps. For replacement parts, refer to part lists on pages 27 and 28. The digits in the matrix do not correspond to the ref. nos. in the parts drawing and lists on pages 27 and 28. This pump is the same as Model DVR315 except for the serial plate and parts listed in the chart below.
Reference Manuals
GRACO 25C658 - Husky 2150 Ss Pump, Horizontal Outlet Port, Stainless Steel Center Section, Stainless Steel Seats, PTFE Balls & Po Diaphragm
Stainless Steel Pump with SST Center Section, Flanged Manifold Ports (Horizontal Outlet), and overmolded diaphragms
The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
Additional Specifications
Specifications
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | PTFE |
| Center Section Material | Stainless Steel |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer |
| Connection Type | Center Flange ANSI/DIN, Horizontal Outlet |
| Diaphragm Material | PTFE Overmold |
| Fluid Inlet Size (in) | 2 |
| Fluid Outlet Size (in) | 2 |
| Fluid Section Material | Stainless Steel |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Maximum Air Consumption (SCFM) | 175 |
| Maximum Air Pressure (MPa) | 0.8 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 145 |
| Maximum Flow Rate (GPM) | 150 |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Operating Temperature (°F) | 200 |
| Maximum Solid Size (in) | 0.25 |
| Power Source | Air |
| Seat Material | Stainless Steel |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 134 |
Compatible Equipment
Related Parts
Part of the Husky pump series with stainless steel construction and flanged manifold ports Model number is marked on pump's serial plate. First digit is always D for Husky diaphragm pumps. For replacement parts, refer to part lists on pages 27 and 28. The digits in the matrix do not correspond to the ref. nos. in the parts drawing and lists on pages 27 and 28. This pump is the same as Model DVR315 except for the serial plate and parts listed in the chart below.
Reference Manuals
