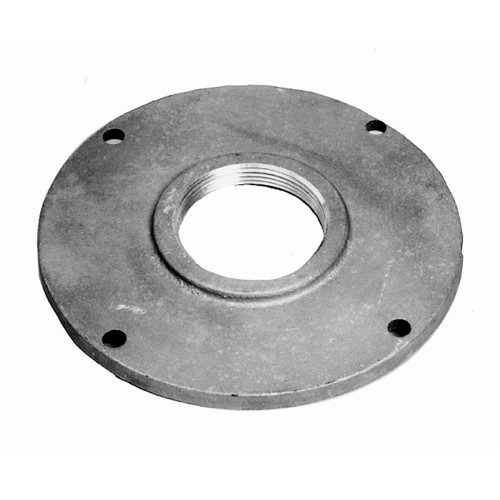

GRACO 204574 - Fire-Ball SD Drum Cover for Open-Head 120 lb or 70 lb Drums
Price: with strikethrough $205.00
Retail Price:
Sale Price: Price $175.95
Item #: 25D116
Price: with strikethrough $8,640.00
Retail Price:
Sale Price: Price $7,162.53
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.
Price: with strikethrough $205.00
Retail Price:
Sale Price: Price $175.95
Price: with strikethrough $1,125.00
Retail Price:
Sale Price: Price $964.29
Price: with strikethrough $149.00
Retail Price:
Sale Price: Price $130.18
GRACO 25D116 - GT 750 36:1 Grease Transfer Pump for 120 lb. Pail w/ Bung Adapter- NPT, 3600 PSI
The GT 750 pump was engineered to perform in challenging applications and changing environments. The large 7.5-inch (190 mm) air motor and pump lower combination allows the GT 750 pump to move the same amount of grease with up to four times fewer pump strokes.
Efficient Air Motor - Use less air to move more grease.
High Flow Rates - Up to 32 lb/min (13.6 kg/min) of grease.
High Volume Per Stroke - Pump more grease without having to drive pump too quickly to damage seals.
Proven Pump Technology - Based on Graco NXT™ pump technology.
Multiple Tank Options - Available in 35, 120 and 400 lb (16, 54 and 181 kg) down tube lengths.
Additional Specifications
| Air Inlet Size (in) | 0.5 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Air Motor Effective Diameter (in) | 7.5 |
| Application | Grease |
| Compatible Material | Grease |
| Fluid Inlet Thread Type | NPT |
| Fluid Inlet Type | NPT |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| For Use With | Grease up to NLGI 2 |
| Includes | 2 Inch Bung Adapter and Lift Ring, 120 lb (54 kg) Lower |
| Maximum Air Consumption (SCFM) | 130 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Working Pressure (MPa) | 24.8 |
| Maximum Working Pressure (psi) | 3600 |
| Pump Ratio | 36:1 |
| Sound Power Level (dB(A)) | 77.2 |
| Sound Pressure Level (dB(A)) | 70.5 |
| Type | Pneumatic Piston Pump |
| Weight (lb) | 59 |
Compatible Equipment
Related Parts
This is a medium pressure, high volume pump for transferring grease. For professional use only. Related manual: 3A1211 SaniForce Air Motor This appears to be a connecting rod component for the 25D116 model pump, specifically designed for 120 lb applications
