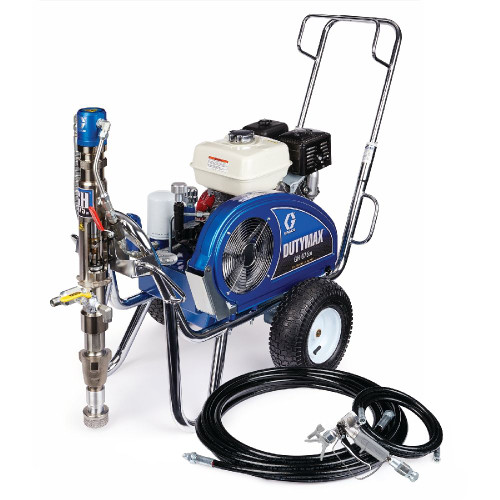

GRACO 25D223 - Dutymax Gh 675Di Gas Hydraulic Airless Sprayer, Complete, 465 PSI
Compact and highly portable gas hydraulic airless sprayer designed for ultimate portability where bigger rigs can't go. Maximum pressure of 465 bar and flow up to 5.3 lpm to tackle the toughest coatings. Faster than manual rolling or squeegee applications. Converts to 227 bar / 11.3 lpm pump with optional kit. Convertible from gas to electric (380V) for ultimate versatility in interior and exterior jobs.
The DutyMax GH 675DI is the preferred choice for high production professional contractors who handle hard-to-atomize materials such as silicone and other waterproofing and protective coating materials. This compact sprayer includes the ultimate portability anywhere the job demands.
Additional Specifications
- Flow Rate: 5.3 lpm (1.4 gpm)
- Max Working Pressure: 465 PSI (6750)
- Hose: 1/2 in x 50 ft (9.5 mm x 15 m) Blue Max II Airless
- Power Source: Honda GX270 / 380V Electric
- Conversion Capability: Converts to 3300 PSI/3 gpm pump with optional kit
- Engine: 270cc Honda (9.0 HP)
- Maximum Tip Size: .041
- Electric Start: No
- Charging System: No
- Whip Hose: 3/8 in x 10 ft (9.5 mm x 3 m) Xtreme Duty
- Filter: No
- Pulsation Dampener: No
- Suction Set: 5.0 gal Direct Immersion
- Pump Type: Endurance Piston Quick Change
- Packing: V-Max Bluestreak
- Piston Rod: Chromex
- Cylinder: Hard Chrome
Specifications
| Compatible Material | Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Intumescent, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Silicone, Texture Mud, Waterproofing |
| Compatible Replacement Pump | 17U996 |
| Convertible | Yes |
| Engine Size (HP) | 9.0 |
| Engine Size (kW) | 6.7 |
| Fluid Inlet Size (in) | 1 1/4-11 1/2 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | NPT |
| Includes | XTR-7 HF Gun with Swivel, XHD RAC 523 Spray Tip, XHD RAC 527 Spray Tip, XHD RAC 531 Spray Tip, XHD RAC Guard, 1/2 in x 50 ft (15.2 m) Xtreme-Duty Airless Hose, 3/8 in x 10 ft (3 m) Xtreme-Duty Airless Whip Hose, TSL 4 oz (118 mL) |
| Maximum Flow Rate (GPM) | 1.5 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Working Pressure (psi) | 6750 |
| Model | DutyMax |
| Overall Height (in) | 35.5 |
| Overall Length (in) | 47.7 |
| Overall Width (in) | 26.5 |
| Power Rating (HP) | 9.0 |
| Power Rating (kW) | 6.7 |
| Power Source | Gas, Electric |
| Series | GH 675DI |
| Type | Airless Sprayer |
| Weight (lb) | 218 |
Features
- Small size—ultimate portability
- Maximum pressure of 465 bar and flow up to 5.3 lpm
- Faster than manual rolling or squeegee applications
- Converts to 227 bar / 11.3 lpm pump with optional kit
- Convertible from gas to electric (380V)
- Refill less with 95 litre Hopper with lid, wheels, heavy-duty frame
Applications
- Applications in the field of roofs, waterproofing, fire-retardant and protective coatings
- Interior and exterior jobs
- Areas where Big Rig can't go
- First unit or smaller set-up applications
- Hard-to-atomize materials
- Silicone coatings
Compatible Equipment
- DutyMax GH675Di system
- 1/2 in x 50 ft Xtreme Duty Hose
- XTR7 HF High Flow gun
- XHD spray tips (523, 527, 531)
- Blue Max II airless hose
- Xtreme Duty whip hose
Related Parts
- 25D224 - DutyMax EH675Di
- 25D227 - Gun-Hose kit
- 25D228 - Pack hose kit
- 17N677 - XTR7 HF gun
- 25D078 - 95L hopper + CAM suction hose
- 25D091 - Suction hose, dual CAM lock
- 25D229 - Heavy Duty JetRoller
- 17U148 - Heavy Duty 1m extension
- 17V188 - Pump kit with gun & hoses
- 25D225 - DutyMax GH 675DI Big 150
Kit Contents
- 25D223 - DutyMax GH 675DI Complete with 1/2 in x 50 ft Xtreme Duty Hose
- Complete sprayer system - specific part breakdown not detailed on this page
Complete airless sprayer system with Honda GX270 gas engine, includes hopper and JetRoller accessories. Part of DutyMax GH/EH 675Di series. Part of GRACO's roof rig sprayer lineup, ideal for tackle the toughest coatings with ultimate portability. Perfect for small job and cut-in solutions as shown in application images. This is a complete sprayer system. The part number 25D223 represents the complete unit rather than individual components.
