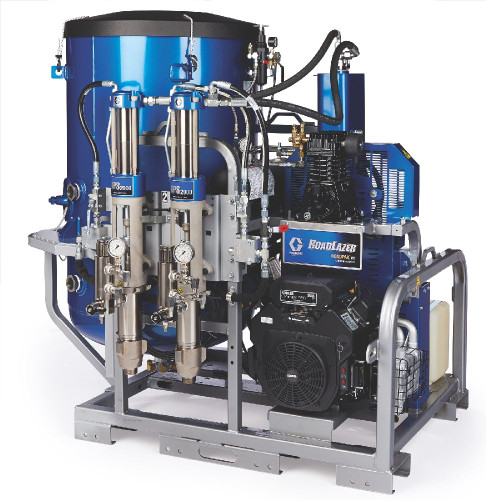

GRACO 25D278 - RoadLazer RoadPak 2-Pump System Option 11, w/ 1350 lb Bead Tank, Rear Seat Kit, & Steerable Carriage

Complete RoadLazer RoadPak 2-Pump roadpack mounting system designed for utility vehicles and flatbed trucks. This preconfigured ready-to-stripe system features modular design for fast installation with plug-and-play style connections. Includes comprehensive striping equipment with bead application capabilities and enhanced maneuverability features.

With its modular design, the Graco RoadLazer RoadPak System is designed to be as easy to use as a walk-behind striper with high production speeds normally only found on Long Line trucks.

Option 11 is a truck-mounted, 2-color capable system featuring a 2-pump RoadPak Pump System with a 1,350 pound Bead Tank, 2-Gun Arm, Advanced Controller, Simple Guide System, Gun Lift Winch Kit, Rear Seat Kit and Steerable Carriage.

• RoadPak 2-Pump System

  • Heavy-Duty RPS 2900 Hydraulic System
    • No-stall design provides unmatched productivity
    • Maximum pressure of 200 bar
  • Proven Displacement Pump System
    • Delivering outstanding results in pumping paint for decades
    • Prime valve allows you to recirculate paint keeping it mixed and ready to go
  • Bead Tank System
    • ASME rated and can drop at a rate of up to 18 kg per minute
    • Easier material loading with large fill spout opening
• RoadPak 2-Pump/2-Gun Arm

  • Fast set-up, high output
  • 3 Gun capacity
  • No-tools gun adjustments
• Advanced Controller

  • Less Setup Time
  • Built-in advanced patterns for quick recall
  • Pattern preview gives a quick visual of colors and patterns selected
  • Export capabilities allows for “proof of job”
• Heavy-Duty Modular Frame System

  • Heavy-duty steel frame is built to last
  • Simple to add the options you want in minutes - optimizing your striping system
  • Small frame size allows it to fit almost anywhere - from the back of a pickup or flatbed truck to the bed of a utility vehicle
• Rear Seat Kit
  • Easy operation with all controls easily within reach
• Steerable Carriage
  • More Accurate Lines
  • Joystick controller and variable speed adjustment
  • Driver can focus on the road while a second operator focuses on striping
• Heavy-Duty Compressor
  • 100 PSI (6.9 bar) at 13.1 cfm (0.37 m³/min)
  • Accumulation tank supports up to 5 airless paint guns and 5 bead guns
• Kohler® Power
  • 19 HP (14.2 kW) Kohler engine
  • Over 15 years of reliable experience

Additional Specifications

• Ce Marked: yes

Specifications

Features

• Ready-to-stripe preconfigured system
• Modular design for fast installation
• Plug-and-play style connections
• 2-pump roadpack configuration
• Includes 1350 lb bead tank
• Rear seat kit included

Applications

• Road striping and marking
• Highway maintenance
• Parking lot striping
• Airport runway marking
• Municipal road marking projects

Compatible Equipment

• Utility vehicles
• Flatbed trucks
• RoadLazer roadpack systems
• RoadLazer RoadPak Line Striping System

Related Parts

• 25D268
• 25D269
• 25D270
• 25D271
• 25D272
• 25D273
• 25D274
• 25D275
• 25D276
• 25D277

Kit Contents

• 3
• 6
• 8
• 10
• 11
• 12
• 13
• 14
• 15

Part of the 16 ready-to-stripe RoadPak system options. Designed for current jobs and future expansion needs. Chart indicates compatibility with various roadpack components including advanced controller, roadview camera system, and gun lift winch kit. This is a complete assembly system option that includes multiple components referenced by numbers 3, 6, 8, 10, 11, 12, 13, 14, 15 which correspond to specific models/parts listed in the Models section above This is a complete assembly system option. The numbers in parentheses (3, 6, 8, 10, 12, 13, 14, 15) correspond to reference numbers in the Models table which include components like: 2 Pump RoadPak, RoadPak Slide in Mounting Frame, 2 Pump RoadPak Gun Arm, RoadLazer/RoadPak Control, RoadPak Pointer System, Steerable Carriage, Winch Kit, and Seat Kit. This part is CE marked.

Reference Manuals

• 344405 (Page 7)
• 3A1658 (Page 1)
• 3A5384 (Page 2)
