Item #: 25F166
Price: $1,130.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

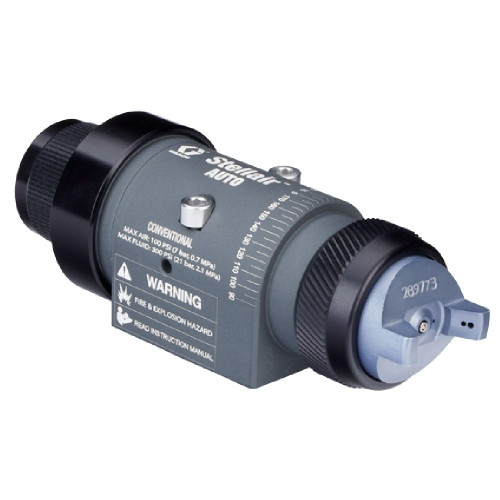

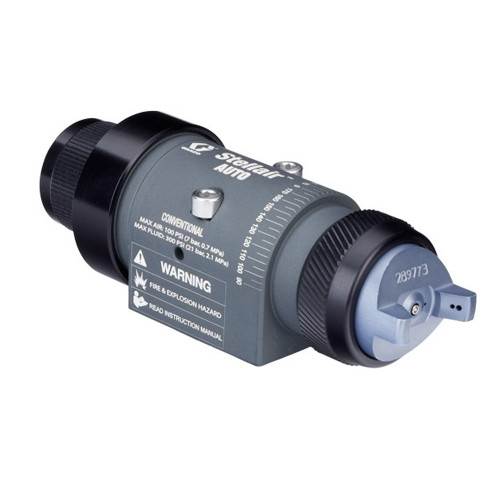

GRACO 25F166 - Stellair Automatic Conventional Air Spray Gun, General Industry, .070" Nozzle
Stellair Automatic Air Spray Gun designed for general industry applications with conventional spray technology. Delivers stellar results for industrial finishing on automotive, industrial metal and plastic components, wood products and architectural structures. Features a 0.070" (1.8) nozzle size for optimal coverage and finish quality.
Conventional air spray gun delivers stellar results as part of a robotic, reciprocator, flat line or other automated finishing system.
Additional Specifications
Specifications
| Application | General Industry |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.070 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | Conventional Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 20 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.070 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.10 |
| Overall Width (in) | 1.63 |
| Sound Power Level (dB(A)) | 88.82 |
| Sound Pressure Level (dB(A)) | 78.91 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
Part of the Stellair Automatic Air Spray Gun family for liquid finishing. Refer to manual #407194 for more information. GRACO provides A+ Customer Service support. Part of the Stellair Automatic Air Spray Gun family for liquid finishing applications. Refer to manual #407194 for more detailed information. A manifold is required. Fluid Control Knob is not included. This is part of the Conventional spray technology family for General Industry applications.
Reference Manuals
GRACO 25F166 - Stellair Automatic Conventional Air Spray Gun, General Industry, .070" Nozzle
Stellair Automatic Air Spray Gun designed for general industry applications with conventional spray technology. Delivers stellar results for industrial finishing on automotive, industrial metal and plastic components, wood products and architectural structures. Features a 0.070" (1.8) nozzle size for optimal coverage and finish quality.
Conventional air spray gun delivers stellar results as part of a robotic, reciprocator, flat line or other automated finishing system.
Additional Specifications
Specifications
| Application | General Industry |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.070 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | Conventional Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 20 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.070 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.10 |
| Overall Width (in) | 1.63 |
| Sound Power Level (dB(A)) | 88.82 |
| Sound Pressure Level (dB(A)) | 78.91 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
Part of the Stellair Automatic Air Spray Gun family for liquid finishing. Refer to manual #407194 for more information. GRACO provides A+ Customer Service support. Part of the Stellair Automatic Air Spray Gun family for liquid finishing applications. Refer to manual #407194 for more detailed information. A manifold is required. Fluid Control Knob is not included. This is part of the Conventional spray technology family for General Industry applications.
Reference Manuals
