Item #: 25F171
Price: $1,180.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

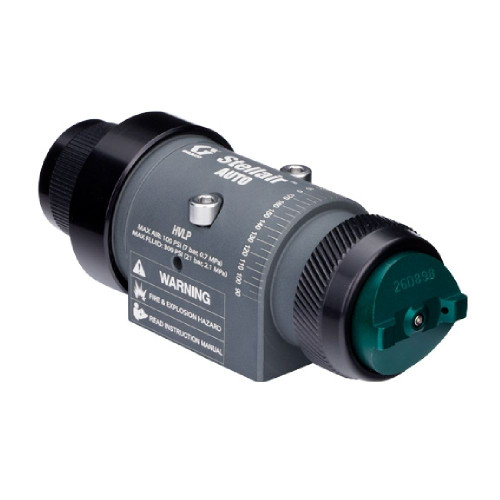

GRACO 25F171 - Stellair Automatic HVLP Air Spray Gun, General Industry .042" Nozzle
Stellair Automatic Air Spray Gun for liquid finishing applications designed for general industry use. Features HVLP compliant technology with 0.042" nozzle size, delivering stellar results for industrial finishing applications including automotive, industrial metal and plastic components, wood products and architectural structures. American built quality - designed, manufactured, assembled, and factory-tested in the USA.
High volume low pressure (HVLP) air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | General Industry |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.042 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 14 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.042 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.10 |
| Overall Width (in) | 1.63 |
| Sound Power Level (dB(A)) | 89.7 |
| Sound Pressure Level (dB(A)) | 79.79 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
This is the HVLP version of the Stellair Auto Spray Gun. The compliant version is part number 25F18. Recommended for low pressure applications due to viscosity of staining materials. Part of the GENERAL INDUSTRY manifold included series with variety of applications using conventional, HVLP, and compliant technology. Refer to manual #407194 for more information. Part of the General Industry variety application line with conventional, HVLP compliant technology. Reference manual #407194 for more information.
Reference Manuals
GRACO 25F171 - Stellair Automatic HVLP Air Spray Gun, General Industry .042" Nozzle
Stellair Automatic Air Spray Gun for liquid finishing applications designed for general industry use. Features HVLP compliant technology with 0.042" nozzle size, delivering stellar results for industrial finishing applications including automotive, industrial metal and plastic components, wood products and architectural structures. American built quality - designed, manufactured, assembled, and factory-tested in the USA.
High volume low pressure (HVLP) air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | General Industry |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.042 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 14 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.042 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.10 |
| Overall Width (in) | 1.63 |
| Sound Power Level (dB(A)) | 89.7 |
| Sound Pressure Level (dB(A)) | 79.79 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
This is the HVLP version of the Stellair Auto Spray Gun. The compliant version is part number 25F18. Recommended for low pressure applications due to viscosity of staining materials. Part of the GENERAL INDUSTRY manifold included series with variety of applications using conventional, HVLP, and compliant technology. Refer to manual #407194 for more information. Part of the General Industry variety application line with conventional, HVLP compliant technology. Reference manual #407194 for more information.
Reference Manuals
