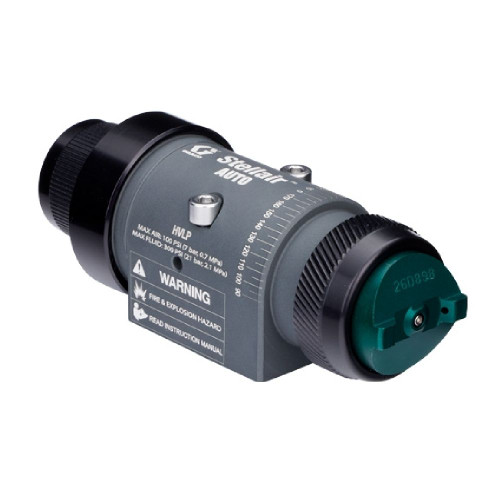

GRACO 25F172 - Stellair Automatic HVLP Air Spray Gun, General Industry .055" Nozzle
Stellair Automatic HVLP Air Spray Gun designed for general industry liquid finishing applications. Features 0.070" (1.8) nozzle size and delivers stellar results for industrial finishing applications including automotive, industrial metal and plastic components, wood products and architectural structures. American built quality with design, manufacturing, assembly, and factory testing in the USA.
High volume low pressure (HVLP) air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | General Industry |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.055 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 18 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.055 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.10 |
| Overall Width (in) | 1.63 |
| Sound Power Level (dB(A)) | 89.7 |
| Sound Pressure Level (dB(A)) | 79.79 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
Part of Stellair Automatic Air Spray Gun family for liquid finishing. Variety of applications with conventional, HVLP, compliant technology available. Fluid control knob included available for some models in this series. Part of the Stellair Automatic Air Spray Gun family for liquid finishing. Refer to manual #407194 for more detailed information. A manifold is required. Fluid control knob included. Part of the General Industry gun model series with 0.055 (1.4) nozzle size.
Reference Manuals
GRACO 25F172 - Stellair Automatic HVLP Air Spray Gun, General Industry .055" Nozzle
Stellair Automatic HVLP Air Spray Gun designed for general industry liquid finishing applications. Features 0.070" (1.8) nozzle size and delivers stellar results for industrial finishing applications including automotive, industrial metal and plastic components, wood products and architectural structures. American built quality with design, manufacturing, assembly, and factory testing in the USA.
High volume low pressure (HVLP) air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | General Industry |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.055 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 18 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.055 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.10 |
| Overall Width (in) | 1.63 |
| Sound Power Level (dB(A)) | 89.7 |
| Sound Pressure Level (dB(A)) | 79.79 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
Part of Stellair Automatic Air Spray Gun family for liquid finishing. Variety of applications with conventional, HVLP, compliant technology available. Fluid control knob included available for some models in this series. Part of the Stellair Automatic Air Spray Gun family for liquid finishing. Refer to manual #407194 for more detailed information. A manifold is required. Fluid control knob included. Part of the General Industry gun model series with 0.055 (1.4) nozzle size.
Reference Manuals
