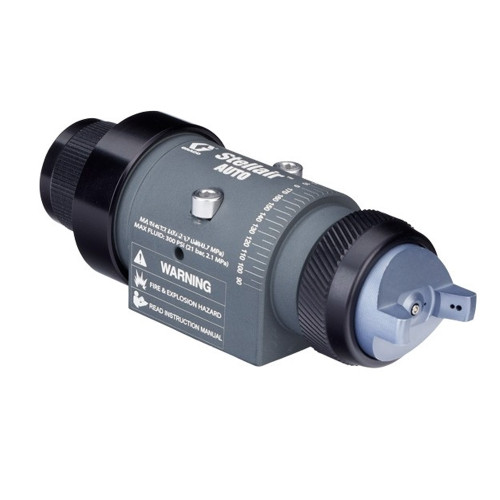

GRACO 25F173 - Stellair Automatic HVLP Air Spray Gun, General Industry .070" Nozzle
Stellair Automatic HVLP Air Spray Gun designed for general industry applications, delivering stellar results for industrial finishing on automotive, industrial metal and plastic components, wood products and architectural structures. Features conventional, HVLP, and compliant technology options for versatile liquid finishing applications.
High volume low pressure (HVLP) air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | General Industry |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.070 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 20 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.070 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.10 |
| Overall Width (in) | 1.63 |
| Sound Power Level (dB(A)) | 89.7 |
| Sound Pressure Level (dB(A)) | 79.79 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
Part of Stellair Automatic Air Spray Gun family for liquid finishing. Reference manual #407194 for more detailed information. Fluid control knob not included with this model. Part of the Stellair Automatic Air Spray Gun family. No fluid control knob included with this model. Reference manual #407194 for more information. This is a gun model that requires a separate manifold. Fluid control knob is included. Part of the General Industry spray gun family with various nozzle sizes and spray technologies.
