Item #: 25F174
Price: $1,260.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

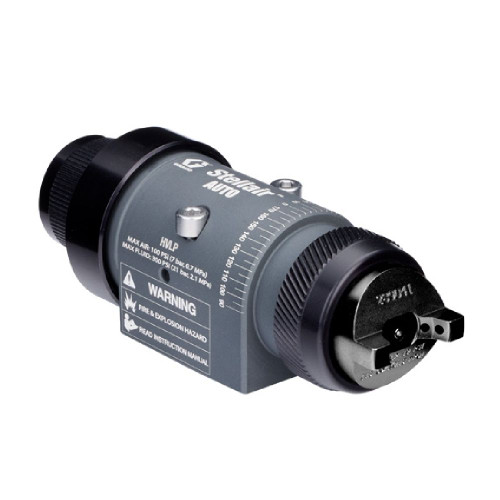

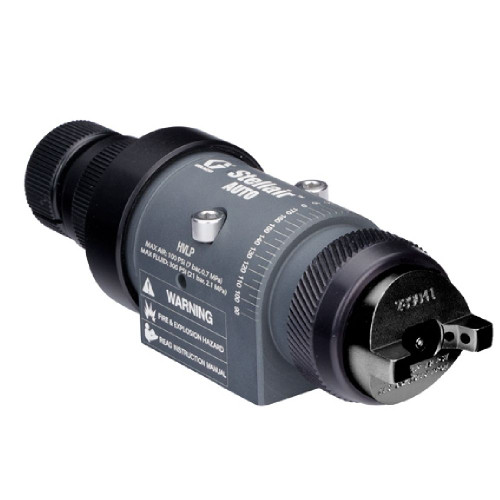

GRACO 25F174 - Stellair Automatic HVLP Gun w/ Fluid Control Knob, General Industry .030" Nozzle
Stellair Automatic HVLP Air Spray Gun designed for general industry applications with variety of conventional, HVLP, and compliant technology capabilities. Delivers stellar results for industrial finishing applications including automotive, industrial metal and plastic components, wood products and architectural structures. Features 0.030" (0.8mm) nozzle size for precision liquid finishing with fluid control knob for optimal spray control.
High volume low pressure (HVLP) air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | General Industry |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne |
| Fluid Adjustment Knob | Clicking |
| Fluid Orifice Size (in) | 0.030 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 10 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.03 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.9 |
| Overall Width (in) | 1.63 |
| Sound Power Level (dB(A)) | 89.7 |
| Sound Pressure Level (dB(A)) | 79.79 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
Part of the General Industry gun model series with manifold adaptability. American built quality with comprehensive customer service support. Refer to manual #407194 for additional information. Part of the Stellair Automatic Air Spray Gun family. Refer to manual #407194 for more detailed information. GRACO provides A+ Customer Service support. This is a gun model that requires a manifold (see Compatible Manifolds on page 39). Part of the General Industry gun series with 0.030 inch nozzle size and HVLP spray technology.
Reference Manuals
GRACO 25F174 - Stellair Automatic HVLP Gun w/ Fluid Control Knob, General Industry .030" Nozzle
Stellair Automatic HVLP Air Spray Gun designed for general industry applications with variety of conventional, HVLP, and compliant technology capabilities. Delivers stellar results for industrial finishing applications including automotive, industrial metal and plastic components, wood products and architectural structures. Features 0.030" (0.8mm) nozzle size for precision liquid finishing with fluid control knob for optimal spray control.
High volume low pressure (HVLP) air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | General Industry |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne |
| Fluid Adjustment Knob | Clicking |
| Fluid Orifice Size (in) | 0.030 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 10 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.03 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.9 |
| Overall Width (in) | 1.63 |
| Sound Power Level (dB(A)) | 89.7 |
| Sound Pressure Level (dB(A)) | 79.79 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
Part of the General Industry gun model series with manifold adaptability. American built quality with comprehensive customer service support. Refer to manual #407194 for additional information. Part of the Stellair Automatic Air Spray Gun family. Refer to manual #407194 for more detailed information. GRACO provides A+ Customer Service support. This is a gun model that requires a manifold (see Compatible Manifolds on page 39). Part of the General Industry gun series with 0.030 inch nozzle size and HVLP spray technology.
Reference Manuals
