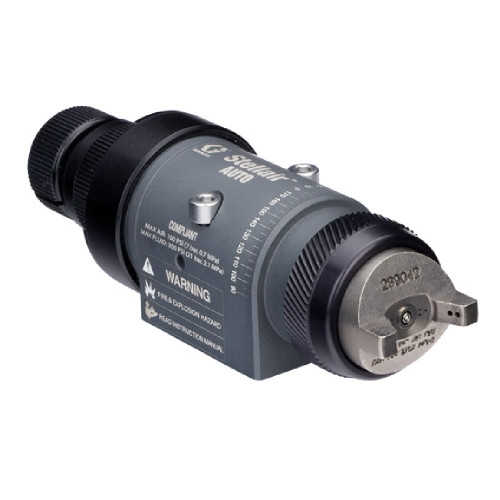

GRACO 25F183 - Stellair Automatic Compliant Gun w/ Fluid Control Knob, General Industry, .055" Nozzle
Stellair Automatic Air Spray Gun designed for compliant liquid finishing applications in general industry. Features automatic operation for stellar results on industrial finishing of automotive, industrial metal and plastic components, wood products and architectural structures. Built with American quality - designed, manufactured, assembled, and factory-tested in the USA.
Compliant air spray gun produces stellar results for general industry applications using robots, reciprocators, flat line machines or other automated finishing technologies.
Additional Specifications
Specifications
| Application | General Industry |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne |
| Fluid Adjustment Knob | Clicking |
| Fluid Orifice Size (in) | 0.055 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | Compliant Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 18 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.055 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.9 |
| Overall Width (in) | 1.63 |
| Sound Power Level (dB(A)) | 87.47 |
| Sound Pressure Level (dB(A)) | 77.56 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
Part of the General Industry gun family with variety of applications using conventional, HVLP, and compliant technology. Refer to manual #407194 for more detailed information. Part of the General Industry variety application line with conventional, HVLP, and compliant technology options. Refer to manual #407194 for more detailed information. This is a gun model that requires a manifold. Part of the 0.055 in. (1.4 mm) nozzle size family with Compliant spray technology and includes fluid control knob.
Reference Manuals
GRACO 25F183 - Stellair Automatic Compliant Gun w/ Fluid Control Knob, General Industry, .055" Nozzle
Stellair Automatic Air Spray Gun designed for compliant liquid finishing applications in general industry. Features automatic operation for stellar results on industrial finishing of automotive, industrial metal and plastic components, wood products and architectural structures. Built with American quality - designed, manufactured, assembled, and factory-tested in the USA.
Compliant air spray gun produces stellar results for general industry applications using robots, reciprocators, flat line machines or other automated finishing technologies.
Additional Specifications
Specifications
| Application | General Industry |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne |
| Fluid Adjustment Knob | Clicking |
| Fluid Orifice Size (in) | 0.055 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | Compliant Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 18 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.055 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.9 |
| Overall Width (in) | 1.63 |
| Sound Power Level (dB(A)) | 87.47 |
| Sound Pressure Level (dB(A)) | 77.56 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
Part of the General Industry gun family with variety of applications using conventional, HVLP, and compliant technology. Refer to manual #407194 for more detailed information. Part of the General Industry variety application line with conventional, HVLP, and compliant technology options. Refer to manual #407194 for more detailed information. This is a gun model that requires a manifold. Part of the 0.055 in. (1.4 mm) nozzle size family with Compliant spray technology and includes fluid control knob.
Reference Manuals
