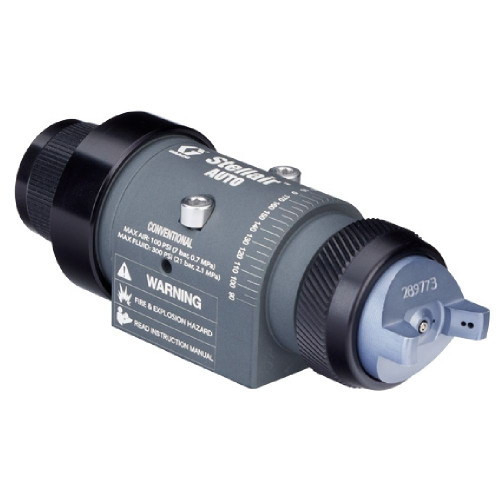

GRACO 25F208 - Stellair Automatic Conventional Air Spray Gun, Air Brush, .042" Nozzle
Stellair Automatic Air Spray Gun designed for air brush applications with narrow paint spray pattern. Delivers stellar results for industrial finishing applications including automotive, industrial metal and plastic components, wood products and architectural structures. American built quality with design, manufacturing, assembly, and factory testing in the USA.
Conventional air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | Air Brush |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Sealants |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.042 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | Conventional Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 14 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.042 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.10 |
| Overall Width (in) | 1.63 |
| Sound Power Level (dB(A)) | 88.82 |
| Sound Pressure Level (dB(A)) | 78.91 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
Part of the Stellair Automatic Air Spray Gun family. Does not include fluid control knob. For more information refer to manual #407194. Part of the Stellair Automatic Air Spray Guns for Liquid Finishing product line. For more information, refer to manual #407194. GRACO provides A+ Customer Service support. A manifold is required - see Compatible Manifolds, page 39. This is a conventional spray technology gun model for Air Brush applications.
Reference Manuals
GRACO 25F208 - Stellair Automatic Conventional Air Spray Gun, Air Brush, .042" Nozzle
Stellair Automatic Air Spray Gun designed for air brush applications with narrow paint spray pattern. Delivers stellar results for industrial finishing applications including automotive, industrial metal and plastic components, wood products and architectural structures. American built quality with design, manufacturing, assembly, and factory testing in the USA.
Conventional air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | Air Brush |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Sealants |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.042 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | Conventional Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 14 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.042 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.10 |
| Overall Width (in) | 1.63 |
| Sound Power Level (dB(A)) | 88.82 |
| Sound Pressure Level (dB(A)) | 78.91 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
Part of the Stellair Automatic Air Spray Gun family. Does not include fluid control knob. For more information refer to manual #407194. Part of the Stellair Automatic Air Spray Guns for Liquid Finishing product line. For more information, refer to manual #407194. GRACO provides A+ Customer Service support. A manifold is required - see Compatible Manifolds, page 39. This is a conventional spray technology gun model for Air Brush applications.
Reference Manuals
