Item #: 25F214
Price: $1,530.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

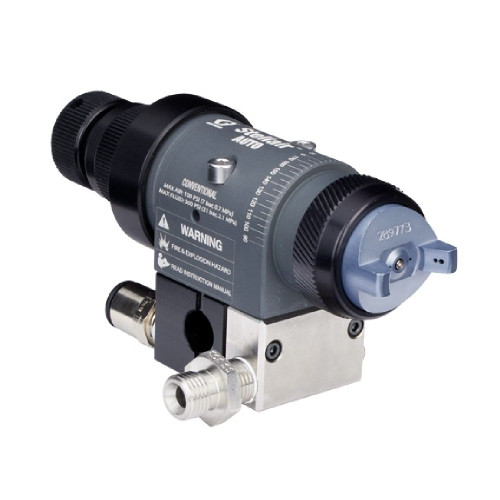

GRACO 25F214 - Stellair Automatic HVLP Gun Package w/ Side-Inlet Manifold (Inch) .055" Nozzle
Stellair Automatic HVLP Air Spray Gun designed for superior liquid finishing applications in automotive, industrial metal and plastic components, wood products and architectural structures. Features manifold standard technology with side inlet manifold configuration and 0.042 inch nozzle for precise application control.
High volume low pressure (HVLP) air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | General Industry |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.055 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Side Inlet |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 18 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.055 |
| Overall Height (in) | 2.95 |
| Overall Length (in) | 5.10 |
| Overall Width (in) | 3.55 |
| Sound Power Level (dB(A)) | 89.7 |
| Sound Pressure Level (dB(A)) | 79.79 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
Part of the Stellair Automatic Air Spray Gun family with variety of applications using conventional, HVLP, and compliant technology. Refer to manual #407194 for more information. Part of the General Industry gun model family with variety of applications using conventional, HVLP, and compliant technology. Includes fluid control knob. Refer to manual #407194 for more information. Part of gun model with manifolds series, includes side inlet manifold 25F155 and fluid control knob
