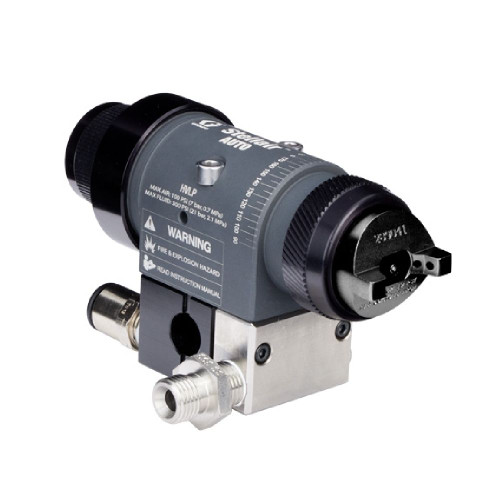

GRACO 25F215 - Stellair Automatic HVLP Gun Package w/ Side-Inlet Manifold (Inch) .055" Nozzle & Fluid Control Knob
Stellair Automatic Air Spray Gun for liquid finishing applications delivering stellar results for industrial finishing. Features HVLP spray technology with side inlet manifold configuration and 0.055" (1.4) nozzle size. Designed for automotive, industrial metal and plastic components, wood products and architectural structures with American built quality - designed, manufactured, assembled, and factory-tested in the USA.
High volume low pressure (HVLP) air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | General Industry |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne |
| Fluid Adjustment Knob | Clicking |
| Fluid Orifice Size (in) | 0.055 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Side Inlet |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 18 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.055 |
| Overall Height (in) | 2.95 |
| Overall Length (in) | 5.9 |
| Overall Width (in) | 3.55 |
| Sound Power Level (dB(A)) | 89.7 |
| Sound Pressure Level (dB(A)) | 79.79 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
Part of the General Industry gun model family with side inlet manifold. Does not include fluid control knob. Refer to manual #407194 for more detailed information. Part of the Stellair Automatic Air Spray Gun family for liquid finishing. Refer to manual #407194 for more detailed information. GRACO offers A+ Customer Service support. Part of gun model series with manifolds included. Uses manifold 25F155. Related to conventional (25F213, 25F212) and compliant (25F217, 25F216) spray technology variants.
Reference Manuals
GRACO 25F215 - Stellair Automatic HVLP Gun Package w/ Side-Inlet Manifold (Inch) .055" Nozzle & Fluid Control Knob
Stellair Automatic Air Spray Gun for liquid finishing applications delivering stellar results for industrial finishing. Features HVLP spray technology with side inlet manifold configuration and 0.055" (1.4) nozzle size. Designed for automotive, industrial metal and plastic components, wood products and architectural structures with American built quality - designed, manufactured, assembled, and factory-tested in the USA.
High volume low pressure (HVLP) air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | General Industry |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne |
| Fluid Adjustment Knob | Clicking |
| Fluid Orifice Size (in) | 0.055 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Side Inlet |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 18 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.055 |
| Overall Height (in) | 2.95 |
| Overall Length (in) | 5.9 |
| Overall Width (in) | 3.55 |
| Sound Power Level (dB(A)) | 89.7 |
| Sound Pressure Level (dB(A)) | 79.79 |
| Spray Type | Air Spray |
| Type | Auto Gun |
Features
Applications
Compatible Equipment
Related Parts
Part of the General Industry gun model family with side inlet manifold. Does not include fluid control knob. Refer to manual #407194 for more detailed information. Part of the Stellair Automatic Air Spray Gun family for liquid finishing. Refer to manual #407194 for more detailed information. GRACO offers A+ Customer Service support. Part of gun model series with manifolds included. Uses manifold 25F155. Related to conventional (25F213, 25F212) and compliant (25F217, 25F216) spray technology variants.
Reference Manuals
