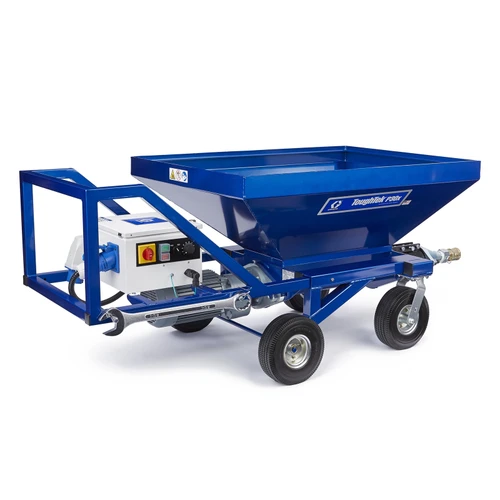

GRACO 25M141 - ToughTek P30X High Torque Package, Water Based Materials, 300 PSI

ToughTek P30X High Torque Package featuring an RS Pump (R8-1.5) designed for high-volume spray applications. This dual-piston pump system delivers consistent material flow for demanding commercial and industrial spraying projects with enhanced torque capabilities for heavy-duty materials.

If you like the compact size of the P20 rotor stator pump, but are looking for more output, the ToughTek P30HT is the perfect fit for your business. Upgrade to this pump if you plan to use epoxy-based mortars (or other thick high-viscosity materials) or plan to spray taller buildings, such as sport stadiums, high-rises, apartment complexes, hospitals and parking garages to name a few.

Built for mid-range mortar applications

• Easy to use, easy to move
• Variable pump output lets you adjust material flow
• Optional remote control operation
• Flow rate: 10 gpm (38 lpm)
• Output (underlayment): 200 bags per hour (based on 50-lb/22.6 kg bags)
• Pumping distance: 100 feet + (30 m)
• Pumping height: 60 feet (18 m)
• Reversible pump direction
• Hopper capacity: 19 Gal (72 L)
• Power requirements: 230V, 30A, 1-ph

Additional Specifications

• Ratio: R8-1.5
• Flow Rate: 9.8 gpm (37.1 lpm)
• Max Working Pressure: 300 PSI (21 bar)
• Material: Water Based Materials
• Pump Type: RS Pump (R8-1.5)
• Material Output: 20 bags per hr
• Max Particle Size: 1/4 in (6 mm)
• Max Hose Length: 250 ft (76.2 m)
• Power Input: 240V, 30A, 1PH
• Pump Outlet Size: 1.5 in (38 mm) Camlock
• Hopper Capacity: 63 gal (239 l)
• System Weight: 440 lb (200 kg)
• Manual: 3A4361

Features

• High torque RS pump design for demanding applications
• Large 63-gallon hopper capacity for extended operation
• Remote switch capability for operator convenience
• Camlock coupling system for quick connections
• High flow rate of 9.8 gpm for productivity
• 250 ft maximum hose length capability

Applications

• High-volume commercial spraying
• Industrial coating applications
• Heavy-duty material spraying
• Large-scale construction projects

Compatible Equipment

• Water based materials
• Camlock coupling systems
• Remote switch systems

Related Parts

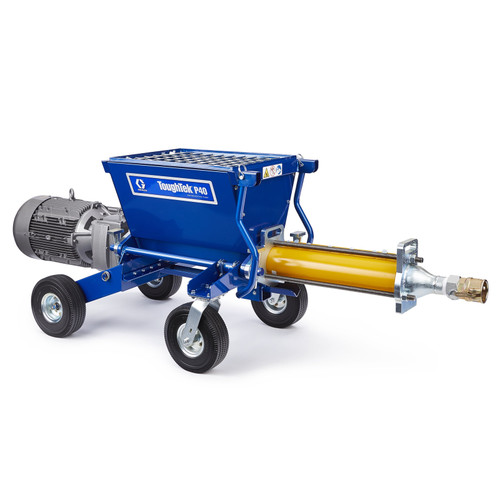

• 25M050 - ToughTek P40 Bare Rotor Stator System, 230V, 25A, 3Ph, 600 PSI
• 25B503 - ToughTek F340e Cementitious Fireproofing Sprayer Package, 120V, Water Based Materials, 600 PSI
• 25M810 - ToughTek F800e Package, Water Based Materials, 600 PSI
• 25M041 - ToughTek P30X High Torque System, Water Based Materials, 300 PSI

Kit Contents

• Applicator
• 1-3/8 in x 50 ft Hose
• 1-3/8 in x 25 ft Hose
• 1 in x 25 ft Hose

This is a complete package system with remote switch capability. The bare unit is available as part number 25M041.

Reference Manuals

• 3J0265EN (Page 3)
