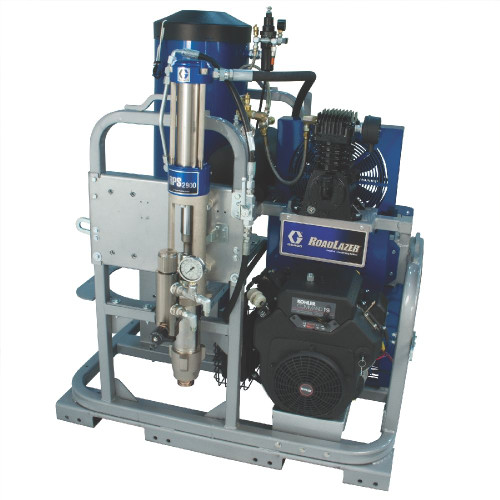

GRACO 25M705 - Roadlazer Roadpak Module

Specifications

• Pump Count: 2
• Flow Rate: 5 gpm
• Bead Tank: No Bead Tank
• Weight: 842 lb (382 kg)
• Engine: Kohler 19 HP (14.2 kW)
• Hydraulic Oil Reservoir: 4 gallons (15 liters)
• Compressor Oil: 9502 SAE 30W non-detergent oil
• Hydraulic Oil: ISO 46 synthetic with a VI equal or greater than154
• Max Working Pressure Paint: 2900 PSI (200 bar)
• Max Working Pressure Hydraulics: 1950 PSI (134 bar)
• Max Paint Flow: 5 gpm (18.9 lpm) @ 2000 PSI (138 bar)
• Air Trigger Pressure Min: 80 PSI (5.5 bar)
• Air Trigger Pressure Max: 200 PSI (14 bar)
• Sound Power Level: 111.7 dB(A)
• Sound Pressure Level: 91.7 dB(A)

Compatible Equipment

• RoadLazer RoadPak Line Striping System
• RoadPak system

Related Parts

• 25M701 - 1-Pump RoadPak Module w/ 450 lb bead tank
• 25M702 - Roadlazer Roadpak Module, 1 Pump No Bt
• 25M703 - 2-Pump RoadPak Module w/ 450 lb bead tank, 2900 PSI
• 25M704 - 2-Pump RoadPak Module w/ 1350 lb bead tank, 100 PSI
• 25M706 - 2-Pump RoadPak HD Module w/ 1350 lb bead tank
• 25M707 - Roadlazer Roadpak Module
• 25M708 - 1-Pump, 2-Gun RoadPak Gun Arm
• 25M709 - 2-Pump, 2-Gun RoadPak Gun Arm
• 25M710 - 2-Pump, 3-Gun RoadPak HD Gun Arm
• 25D932

This is a 2 pump RoadPak configuration without bead tank capability, part of the RoadLazer RoadPak Line Striping System family Part of the RoadPak system family. Reference number 2 in the models table. This is a 2-pump RoadPak configuration without bead tank capability, part of the standard RoadPak product line

Reference Manuals

• 3A1658 (Page 1) CE Kit for RoadLazer RoadPak Line Striping System
• 3A5384 (Page 2) RoadLazer RoadPak & RoadPak HD Line Striping System
• 3A5386 (Page 2) RoadLazer RoadPak & RoadPak HD Line Striping System, Parts
