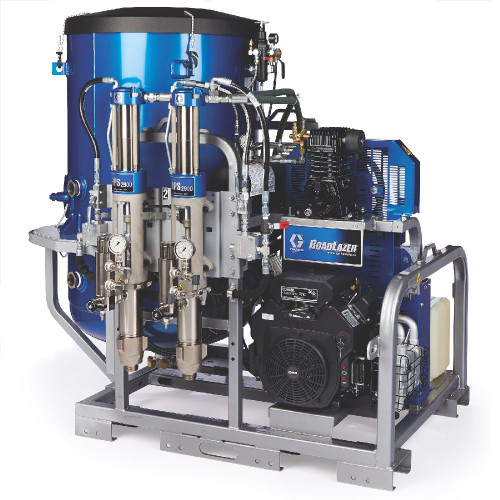

GRACO 25M706 - 2-Pump RoadPak HD Module w/ 1350 lb bead tank

The GRACO 25M706 is a 2-Pump RoadPak HD System with 1350 lb bead tank, designed as a cost-effective alternative to large long-line trucks. This self-contained solution is ideal for smaller road and airport striping jobs, featuring fast setup and simple operation through an advanced controller with convenient preset patterns.

Specifications

• Flow Rate: Maximum pressure 2900 PSI
• Bead Tank Capacity: 1350 lb
• Pump Configuration: 2-Pump
• Engine: 26.5 HP EFI Kohler engine
• Compressor: Heavy-duty compressor, 100 PSI at 13.1 cfm
• Accumulator: 2.2 gallon accumulation tank
• Pump Count: 2

Features

• HP's 30 Hydraulic Pumping System for higher productivity
• Maximum pressure 2900 PSI with GT 833 optimized for road striping
• Heavy-duty modular frame system for customizable design
• 26.5 HP EFI Kohler engine for reliable performance
• No-stall hydraulic motor design from GRACO
• Industry-proven displacement pump system

Applications

• Road striping operations
• Large-scale pavement marking projects
• Professional highway marking
• Municipal road maintenance
• Airport runway striping
• Road marking and striping

Compatible Equipment

• RoadPak pump systems
• Heavy-duty modular frame systems
• Professional striping equipment
• Custom RoadPak System configurations
• Various gun arm mounting systems
• Alignment systems

Related Parts

• 25M701 - 1-Pump RoadPak Module w/ 450 lb bead tank
• 25M703 - 2-Pump RoadPak Module w/ 450 lb bead tank
• 25M704 - 2-Pump RoadPak Module w/ 1350 lb bead tank
• 25M711 - RoadPak Advanced Controller

Part of GRACO's ROADLAZER ROADPAK PUMP SYSTEMS line, emphasizing high output and unmatched reliability for professional road striping applications Part of GRACO's customizable RoadPak system family that allows users to design their own striping system by selecting components. This is the heavy-duty dual pump option with maximum bead capacity. Part of GRACO's RoadPak module family offering cost-effective alternatives to large striping trucks. For more information see GRACO brochure 344405.

Reference Manuals

• 344405 (Page 5) RoadLazer Brochure
• 3J0419EN (Page 9) EN-A
• 3J0419EN-A (Page 8)
• 3A1658 (Page 1) CE Kit for RoadLazer RoadPak Line Striping System
• 3A5384 (Page 2) RoadLazer RoadPak & RoadPak HD Line Striping System
