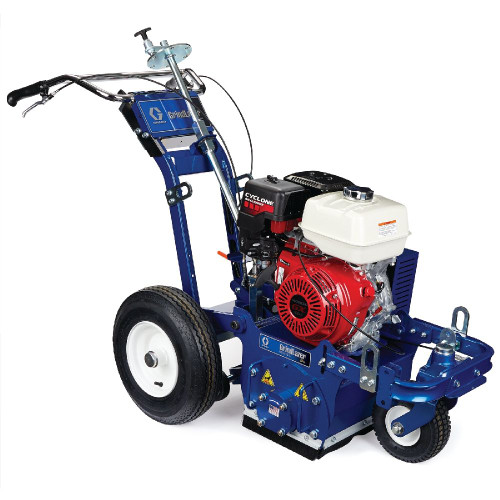

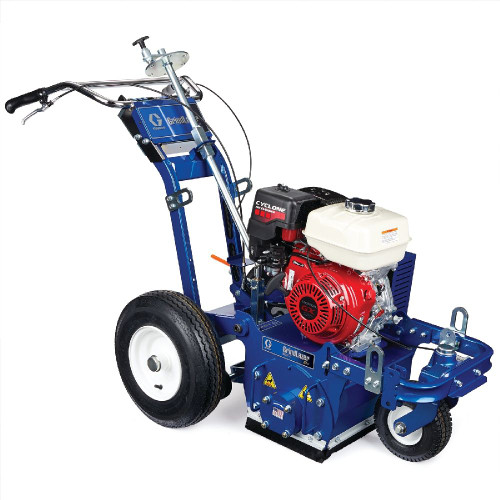

GRACO 25M842 - GrindLazer Standard DC87 G Drum Scarifier (Bare Unit) - 6.5 HP Honda

Professional drum scarifier designed for surface preparation and coating removal applications. Features a robust 20 cm (8") working width with 12.5 cm (5") cutter drum diameter for efficient material removal. Powered by reliable Honda 200 (6.5) HP engine with pull start for dependable operation in demanding jobsite conditions.

The GrindLazer Standard DC87 G scarifier is a great option for those smaller traffic marking removal jobs, trip hazard removal and for preparing a surface before applying new traffic markings.

• Heavy-Duty All-Steel Frame

  • Jobsite Tough Design
• Durable Honda Power With Cyclone Filter

  • Contractor-Preferred Power
  • Cyclone filter protects the engine from harmful airborne dust
• Dual Depth Control

  • Easy Micro & Macro Adjustments
  • Multi-position lever and rotating knob controls
• Comfort Grip Handles

  • Reduced Vibration for All-Day Comfort
• User-Friendly Operation

  • Adjustable handlebar to fit different operators
  • Easy-to-Reach Throttle Control
• Built-In Application Flexibility

  • Swivel and Fixed Front Wheel
  • Swivel Wheel for feathering applications
  • Fixed Wheel for straight line removal
• Sealed Main Bearing

  • Maintenance-free design
  • Long life and ease-of-use
• Triple Drive Belts

  • Durable High-Torque Power Transfer
• Optional Dust Removal

  • Vacuum port for LazerVac vacuum system
• Easy-to-Read Gauges

  • Dual Purpose Tachometer and Hour Meter
  • Ideal for maintenance—ensuring your equipment is in top shape
  • Displays engine RPMs while running

Additional Specifications

• Material: Heavy-Duty All-Steel Frame
• Max Working Width: 20 cm (8")
• Cutter Drum Diameter: 12.5 cm (5")
• Engine Start: Pull Start
• Max Cut Rate Walk: 30 m²/hr (300 ft²/hr)
• Weight: 57 kg (125 lbs)
• Unit Type: Bare Unit

Specifications

Features

• Vacuum port for dust collection
• Cyclone™ air filter system
• Optional dust suppression water connection
• Drum cutter design for aggressive material removal
• Honda engine reliability
• Walk-behind operation for operator control

Applications

• Surface preparation
• Coating removal
• Concrete scarification
• Floor preparation
• Smaller traffic marking removal jobs
• Trip hazard removal

Compatible Equipment

• Not compatible with LineDriver/Skid loader
• LazerVac vacuum system
• Various carbide cutter accessories

Related Parts

• 25N391 - GrindLazer Standard DC21 E
• 25N392 - GrindLazer Standard RC71 E
• 25M843 - DC99 G (bare)
• 25M367 - Dust Suppression Water Kit
• 25M363 - Edger Kit
• 25M442 - Carbide Flat 2 inch Coarse Edger Drum
• 25M443 - Carbide Flat 2 inch Medium Edger Drum
• 25M444 - Carbide Flat 2 inch Fine Edger Drum

This is a bare unit. Dust suppression water connection is optional. Not compatible with LineDriver/Skid loader systems. This is a bare unit (engine and frame only). Standard series scarifiers are great options for smaller jobs compared to handheld series. Part of the GrindLazer Standard Series family.

Reference Manuals

• 341251 (Page 22)
• 344384 (Page 6)
• 3A5578 (Page 1)
