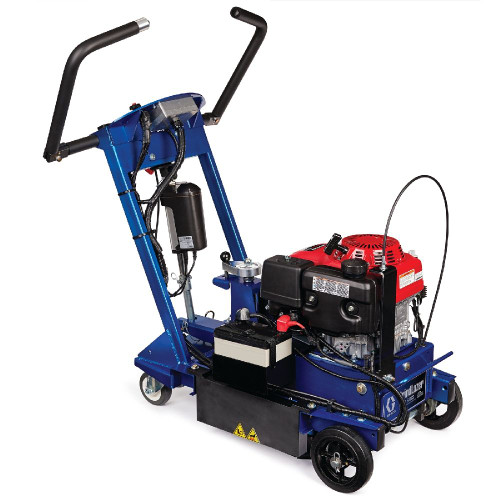

GRACO 25M847 - GrindLazer Pro RC813 G Rotary Scarifier (Bare Unit) - 13 HP Honda

The GrindLazer Pro RC813 G is the ideal choice for when you need to remove lines without grooves. The rotary action of this scarifier hovers over the surface, resulting in line removal without leaving any ghost lines—making this the No-Groove Line Eraser. Features contractor-preferred Honda power with electric start for easy operation even in cold weather.

The GrindLazer Pro RC813 G Professional Series is the ideal choice for when you need to remove lines without grooves. The rotary action of this scarifier hovers over the surface, resulting in line removal without leaving any ghost lines—making this the "No-Groove Line Eraser".

• No-Groove Line Eraser
  • Rotary cut removes lines without leaving any grooves
• Honda Power with Electric Start
  • Contractor preferred power and proven reliability
  • Electric start system allows for easy starting with the flip of a switch—even in cold weather
• All-Steel Frame
  • Heavy-duty design will hold up to the harsh jobsite environment
• Advanced Depth-Control System
  • Independent adjustment for pitch, depth and pressure—giving you ultimate control and no-damage removal on a wide range of surfaces
• Tilt-Up Chassis
  • Designed for quick and easy cutter removal
• Adjustable, Anti-Vibration Handle Bars
  • Padded for minimal vibration transfer
  • Adjustable for all-day comfort for all users
• Dust-Free Vacuum Port
  • Allows for hookup of a LazerVac vacuum system for the reduction of airborne dust
• Maintenance-Free Sealed Bearings
  • Maintenance-free design for long life and ease-of-use
• Dual Purpose Tachometer and Hour Meter
  • Track usage for maintenance—ensuring your equipment is in top shape
  • Displays engine RPMs while running

Additional Specifications

• Material: Heavy-Duty All-Steel Frame
• Drum Diameter: 20 cm (8")
• Engine: Honda Power with Electric Start
• Coverage Rate: 75 m²/hr (800 ft²/hr)
• Weight: 204 kg (450 lbs)
• Design: Rotary Scarifier

Specifications

Features

• 13 HP Honda vertical engine for reliable power
• Electric start for easy operation
• High productivity with 75 m²/hr coverage rate
• 20 cm (8") rotary drum design
• Standard dust collection capability
• Optional remote control available

Applications

• Concrete surface preparation
• Surface grinding and scarifying
• Floor preparation applications
• Line removal without grooves
• Surface preparation
• Pavement marking removal

Related Parts

• 25N669
• 25M843 - GrindLazer Standard DC89 G
• 25M846 - GrindLazer Pro DC1013 G
• 25M659 - PRO RC813 G DCS (bare)

Part of the GrindLazer Pro series. Features standard dust collection with optional remote control capability. Alternative model 25N669 also available. This is the bare unit version of the PRO RC813 G. The DCS version (25M659) includes additional Depth Control System features for enhanced control and application flexibility.

Reference Manuals

• 341251 (Page 22)
• 344384 (Page 8)
• 3A5581 (Page 1)
