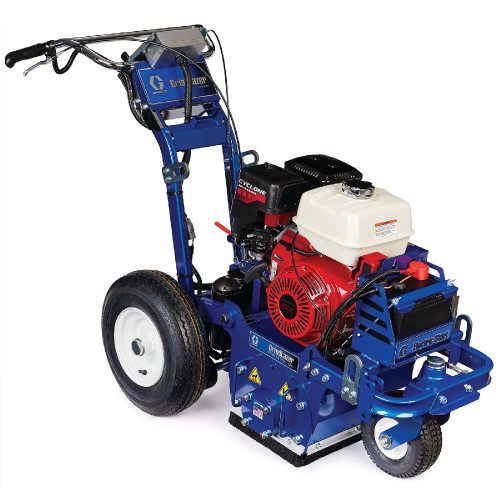

GRACO 25M993 - GrindLazer High Production DC1013 G Drum Scarifier (Bare Unit) - 13 HP Honda

High-production drum scarifier designed for heavy-duty concrete surface preparation with electric start convenience and professional-grade performance for larger commercial applications

The GrindLazer HP DC1013 G is the contractor choice for all-around scarifying jobs, including parking lot lines, intersection markings, construction zones and sidewalk smoothing. The optional LineDriver System delivers unmatched productivity to get more work done without the fatigue from walking.

• DialDown Depth Control System

  • Easy Cutter Depth Control
  • Easy to “dial down” for precise cutting depth control with multiple positions
• InstaCut Technology

  • Ultimate Removal or Inlay Flexibility
  • Only unit to offer “hands-on” engagement of the cutting deck system for up or down position
  • Allows deck to “float” when on uneven surfaces No-tool system
• Vibration Reduction Technology

  • All-Day Comfort
  • Up to 4x less vibration than the competition
  • Pneumatic air-filled tires, comfort grips and cart design combine to eliminate vibration, reducing user fatigue
  • Comfort-grip handlebars for precise steering
• Durable 13 HP Honda Power With Cyclone Filter

  • Contractor-Preferred Power
  • Cyclone filter protects the engine from harmful airborne dust
• Extreme-Duty ProStart System

  • Safer Operation
  • Easy cutter start/stop with centrifugal Easy cold weather starting
  • Provides longer belt life and eliminates broken recoils
• TriBelt Drive System

  • Maximum Road Handling
  • 3-cog belt design optimizes power transfer and eliminates costly downtime
• Fat Track Front Swivel Wheel

  • Fast, Easy Turning
  • Proven front caster wheel system makes turning fast and easy
  • Maneuver curves better No need to “muscle it” while moving
• EasyGlide Wheel Mount System

  • Safer, Easier To Maneuver
  • Front-mounted caster along with dual rear pneumatic air-filled tires
  • Pneumatic air-filled tires help eliminate vibration
• Dust Removal

  • Vacuum port for optional LazerVac vacuum system
• LineDriver Compatible

  • Double Your Productivity

Additional Specifications

• Max Working Width: 25 cm (10")
• Cutter Drum Diameter: 17.5 cm (7")
• Engine: Honda 390 (13)
• Engine Start: ProStart (25M993) Electric Start (25N658)
• Max Cut Rate Walk: 75 m²/hr (800 ft²/hr)
• Max Cut Rate Linedriver: 160 m²/hr (1700 ft²/hr)
• Weight: 141 kg (310 lbs) for 25M993

Specifications

Features

• ProStart engine starting system
• Electric start capability
• Vacuum port for dust collection
• Cyclone™ air filter system
• Tach/Hour meter included
• Optional dust suppression water connection

Applications

• Concrete surface preparation
• Floor scarifying and texturing
• Coating removal
• Commercial and industrial floor prep

Compatible Equipment

• Optional LineDriver system
• Dust collection systems via vacuum port
• Water suppression systems (optional)

Related Parts

• 25N658 - Electric start version with DCS
• 25M992 - HP DC89 G model
• 25M994 - HP DC1021 G model

This is the bare unit version (25M993) with ProStart system, while 25N658 offers electric start. Part of the GrindLazer HP series for high-production applications.

Reference Manuals

• 341251 (Page 22)
• 344384 (Page 9)
• 3A5929 (Page 1)
• X006627 (Page 1)
