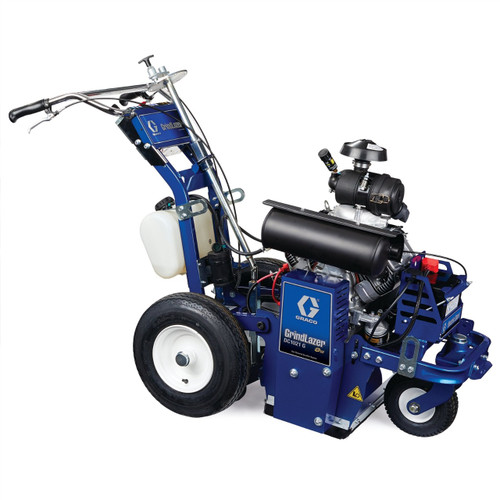

GRACO 25M994 - GrindLazer High Production DC1021 G Scarifier, Bare Unit, 10" Cut

High-production concrete surface preparation unit featuring drum cutter technology with reverse cut capability for efficient material removal. Electric start convenience with powerful Vanguard engine delivers superior productivity for demanding concrete grinding applications.

The GrindLazer HP DC1021 G is the high production choice for demanding scarifier jobs. Its “Up-Cut” cutting direction removes all types of lines on parking lots or roadways while providing the power for inlay/grooving jobs. The LineDriver will help you finish jobs faster and more accurately.

• DialDown Depth Control System

  • Easy Cutter Depth Control
  • Easy to “dial down” for precise cutting depth control with multiple positions
• InstaCut Technology
  • Only unit to offer “hands-on” engagement of the cutting deck system for up or down position
  • Provides ultimate flexibility for removal and inlay
  • No-tool system
  • Allows deck to “float” when on uneven surfaces
• Vibration Reduction Technology

  • All-Day Comfort
  • Up to 4x less vibration than the competition
  • Pneumatic air-filled tires, comfort grips and cart design combine to eliminate vibration, reducing user fatigue
  • Comfort-grip handlebars for precise steering
• Vanguard 21 HP Engine with Donaldson Heavy-Duty Filtration

  • Improved filtration to work longer and improve engine life
  • Electric start system allows for easy starting with the turn of a key – even in cold weather
• Extreme-Duty ProStart System

  • Safer Operation
  • Easy cutter start/stop with centrifugal clutch - one of the safest units on the market today
  • Easy cold weather starting Provides longer belt life and eliminates broken recoils
• TriBelt Drive System

  • Maximum Road Handling
  • 3-cog belt design optimizes power transfer and eliminates costly downtime
• Fat Track Front Swivel Wheel

  • Fast, Easy Turning
  • Proven front caster wheel system makes turning fast and easy
  • Maneuver curves better
  • No need to “muscle it” while moving
• EasyGlide Wheel Mount System

  • Safer, Easier To Maneuver
  • Front-mounted caster along with dual rear pneumatic air-filled tires
  • Pneumatic air-filled tires helps eliminate vibration
• Dust Removal

  • Vacuum port for optional LazerVac System
• LineDriver Required

Additional Specifications

• Max Working Width: 25 cm (10")
• Cutter Drum Diameter: 17.5 cm (7")
• Engine: Vanguard 630 (21)
• Max Cut Rate Walk: 195 m²/hr (2100 ft²/hr)
• Weight: 175 kg (385 lbs)
• Cutter Type: Drum, Reverse cut

Specifications

Features

• Electric start for easy operation
• Vacuum port for dust collection
• Donaldson Heavy-duty air filter
• Tach/Hour meter for maintenance tracking
• Drum cutter with reverse cut capability
• High production cut rate up to 195 m²/hr (2100 ft²/hr)

Applications

• Concrete surface preparation
• Industrial floor grinding
• Surface profiling and texturing
• Coating removal

Compatible Equipment

• LineDriver/Skid loader (Required)

Related Parts

• 25M992 - GrindLazer HP DC89 G
• 25M993 - GrindLazer HP DC1013 G
• 25N658 - DC1013 G with DCS
• 25N659 - DC1021 G with DCS

This is a bare unit. Optional dust suppression water connection available. LineDriver connection required for operation.

Reference Manuals

• 341251 (Page 22)
• 344384 (Page 10)
• 3A5929 (Page 1)
• X006627 (Page 1)
