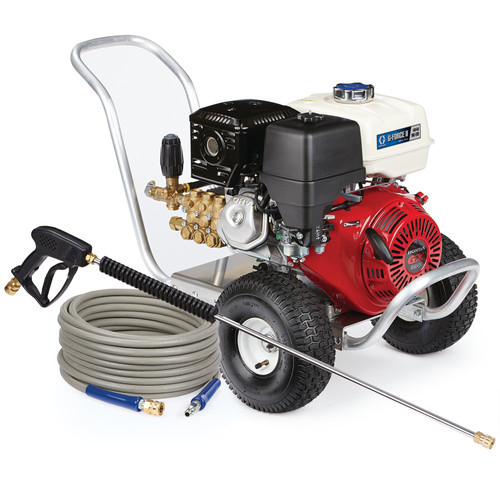

GRACO 25N683 - G-Force II 4040 HG-BD Pressure Washer, CAT Brass Triplex pump, 4000 PSI

GRACO 25N683 G-Force II 4040 HG-BD is a superior power and durability pressure washer designed for large commercial or industrial applications. This top-of-the-line unit is built to tackle the toughest cleaning jobs with the highest performance available for tough, all-day cleaning and surface preparation, handling even the most demanding jobs.

Specifications

• Flow Rate: 15.14 lpm (4.0 gpm)
• Max Working Pressure: 275 bar (4000 PSI)
• Material: CAT Brass Triplex pump
• Engine: Honda GX390
• Transmission: Belt
• Water Type: Cold
• Weight: 132 lbs (60 kg)
• Hose: 15m + QDs
• Tips: 5 tips included
• Pump: GP Pump
• Series: G-Force II
• Cleaning Units: 16000 PSI x GPM
• Weekly Usage: 30+ hr/wk
• Pump Type: GP Triplex Plunger Pump
• Unloader Type: EZ Start, Adjustable Pressure External Bypass

Features

• Honda GX390 engine for reliable power
• CAT brass triplex pump for durability
• Belt transmission system
• Integrated adjustable unloader
• Easy start pressure relief
• Pressure gauge included

Applications

• Heavy-duty commercial cleaning
• Industrial surface preparation
• Equipment cleaning
• Building maintenance
• Vehicle washing
• Concrete cleaning

Compatible Equipment

• G-FORCE II accessory system
• Standard pressure washer attachments
• Quick disconnect fittings
• 4040 HG-BD pressure washer
• G-Force II 4040 series

Related Parts

• 25N638 - 3325 HA-DD
• 25N639 - 3230 HA-DD
• 25N681 - 4040 HG-DD
• 25N682 - 4040 HC-DD
• 25N684 - 4040 HC-BD
• 25N640 - 4240 KA-DD
• 25N641 - 4240 HA-DD
• 25N681
• 25N682
• 25N684

Kit Contents

• Professional Grade Gun with 36 in (91 cm) Wand
• 3/8 in (.95 cm) x 50 ft (15 m) non-marking hose w/ Quick Connects
• Quick Connect Chemical Injector kit
• 4.0 Orifice 0° Red tip - 805543
• 15° Yellow tip - 805544
• 25° Green tip - 805545
• 40° White tip - 805546
• Black Chemical tip - 805634

This is the 4040 HG-BD model in the G-FORCE II series, featuring high-pressure output with belt drive transmission and external pump configuration Part of the Superior Power & Durability category in the Pressure Washer Series. Model 4040 HG-BD with Honda Engine and GP Pump configuration. Part of G-Force II 4040 series. Includes 1 year warranty on all components, 5 years on GP pump, 3 years on Honda engine. Coverage against defects in material and workmanship.

Reference Manuals

• 320582 (Page 4)
• 344379 (Page 7)
• 3A6588 (Page 2)
