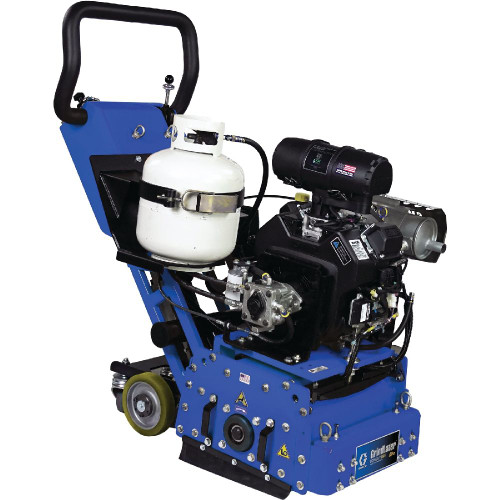

GRACO 25P474 - GrindLazer HP DC1538 G DCS Drum Scarifier w/ High-Speed Pulley Kit (Gasoline) - 38 HP

High-production drum scarifier with high-speed pulley kit designed for diamond and PCD tooling applications. Features electric start engine and electronic depth control system for precise surface preparation work including leveling uneven surfaces, shot and crack cleaning, and removing traffic markings.

Specifications

• Flow Rate: 325 m²/hr (3500 ft²/hr)
• Cutter Type: Drum
• Max Working Width: 16 in (40 cm)
• Cutter Drum Diameter: 10 in (25 cm)
• Engine Motor: 38 HP Kohler EFI Gas
• Engine Start: Electric Start
• Air Filter: Heavy Duty
• Tachometer: YES
• Max Cut Rate: 3,500 sq ft/hr (325 sq m/hr)
• Lazervac Compatible: NO
• Guard Wheels: 2
• Electronic Depth Control: YES
• Drum Diameter: 40.5 cm (16")
• Drum Width: 25 cm (10")
• Engine: Kohler (38)
• Start Type: Electric Start
• Weight: 329 (725)

Features

• High-speed pulley kit for diamond and PCD tooling
• 38 HP Kohler EFI gas engine with electric start
• Electronic depth control system
• Heavy duty air filter
• 16 inch maximum working width
• High production rate up to 3,500 sq ft/hr

Applications

• Leveling uneven surfaces
• Shot and crack cleaning
• Removing traffic markings
• Diamond tooling applications
• PCD tooling applications
• Concrete surface preparation

Compatible Equipment

• DC1538 G DCS GrindLazer
• GrindLazer HP DC1538 G DCS

Related Parts

• 25R1DV
• 25R1DG
• 25P471 - GrindLazer HP RC820 H Rotary Scarifier (Bare Unit) - 20 HP Hydraulic
• 25P472 - GrindLazer HP RC1640 H Rotary Scarifier (Bare Unit) - 40 HP Hydraulic, Skid Steer Mount
• 25P473 - GrindLazer HP RC1625 G Rotary Scarifier (Bare Unit) - 25 HP Gasoline, Skid Steer Mount
• 25R103
• 25P783 - GrindLazer HP DC1520 E DCS Electric Scarifier, High-Speed Pulley
• 25R100 - GrindLazer HP DC1538 G DCS Drum Scarifier w/ Low-Speed Pulley Kit (Gasoline) - 38 HP

Kit Contents

• High-Speed Pulley Kit components (specific part numbers not listed on page)

Part of GRACO's High Production Series GrindLazer family. Specifically configured with high-speed pulley for diamond and PCD tooling applications. Not compatible with LazerVac vacuum systems. Part of the GrindLazer HP series with DCS (Dust Collection System) capability. Heavy-duty option available. Bob-Tach Skid Loader Connection available as optional feature.

Reference Manuals

• 290474 (Page 4) GrindLazer DC15 DCS
• 341251 (Page 22) GrindLazer
• 344384 (Page 11) GrindLazer Brochure (Asia Pacific)
• 3J0054EN (Page 4)
• 3J0423EN - B (Page 4)
