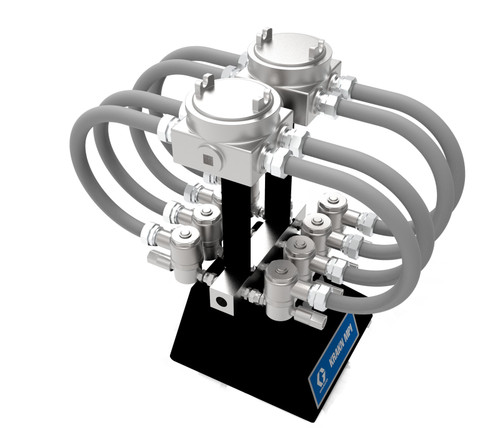

GRACO 25R056 - 8 Valve KRAKN MPI fluid manifold assembly, Class 1, Division 1 approved for Hazardous Locations, 3000 PSI

Multi-point chemical injection for oil and gas wells and pipelines

Specifications

• Max Working Pressure: 3000 PSI (345 Bar)
• Material: 316 Stainless Steel construction
• Seals: FFKM seals
• Approvals: C1D1 and GP
• Injection Points: 8 points
• Valve Count: 8 valves
• Hazardous Location Rating: Class 1, Division 1
• Voltage: 24 VDC
• Number Of Solenoid Valves: 8

Features

• Replace up to eight chemical pumps with just one
• Available from 2 up to 8 points of injection
• Solenoid valve options for General Purpose use and Class 1, Division 1 Hazardous Locations
• If one line is down for service, flow rates and pressures are maintained across the remainder of the injection lines
• Easy access to all solenoid valves
• Harrier+ MPI compatible

Applications

• Chemical injection systems
• Hazardous locations (Class 1, Division 1)
• Multi-point injection applications
• Industrial fluid handling
• Hazardous location lubrication systems
• Multiple point injection applications

Compatible Equipment

• GRACO's Harrier+ MPI control box
• Chemical pumps
• Third party pumps
• KRAKN MPI fluid manifold
• Harrier+ MPI control boxes (B52M series)
• 24 VDC systems

Related Parts

• 25R050
• 25R051
• 25R052 - 4 Valve KRAKN MPI fluid manifold assembly, Class 1, Division 1 approved for Hazardous Locations, 3000 PSI
• 25R053 - 5 Valve KRAKN MPI fluid manifold assembly, Class 1, Division 1 approved for Hazardous Locations, 3000 PSI
• 25R054 - 6 Valve KRAKN MPI fluid manifold assembly, 3000 PSI
• 25R055 - 7 Valve KRAKN MPI fluid manifold assembly, Class 1, Division 1 approved for Hazardous Locations, 3000 PSI
• 25R057
• 25R058 - 3 Valve KRAKN MPI fluid manifold assembly for General Purpose use, 3000 PSI
• 25R059 - 4 Valve KRAKN MPI fluid manifold assembly for General Purpose use, 3000 PSI
• 25R060

Part of KRAKN MPI family with configurations from 2-8 injection points. Pair with GRACO's Harrier+ MPI control box and chemical pumps for best dosing accuracy. This is part of GRACO's modular MPI system approach where customers can build their system by selecting individual components or choose from pre-configured packages Has solenoid valve approvals: Class I, Div 2, Group A & B; Class I, Div 1, Group C & D; Class II, Div 1, Group E, F & G (UL and CSA certified)

Reference Manuals

• 3G0068EN - B (Page 3)
• 3A7379 (Page 3) KRAKN™ MPI Solenoid Valve Manifold
