GRACO 25R488 - Low Shear Fluid Back Pressure Regulator, 300 Max psi, 10 gpm Max flow rate, SST, Mechanical, high wear, sanitary Inlet/Outlet

Low shear back pressure regulator designed to minimize material waste and maximize service life. Features innovative flow path geometry that minimizes paint shear for high solid, shear sensitive materials while maintaining consistent pressure across broad flow rate ranges. Compact design with backwards compatibility ensures easy installation and replacement.

Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.

Additional Specifications

• Material: SST, Acetal and PTFE
• Regulated Pressure: 25-250 PSI (1.7-17 bar)
• Max Delivery: 10 GPM (38 lpm)
• Wetted Parts: SST, Acetal and PTFE
• Type: Spring operated
• Gauge Included: Yes
• Flow Range: 0-10 gpm, 0-38 lpm
• Regulated Fluid Pressure: 25-250 PSI (.17-1.72 MPa, 1.7-17.2 bar)
• Approvals: CE, Ex II 2 G, Ex h IIB T6 Gb, 0°C to 50°C
• Protection Type: constructional safety 'c'
• Flow Type: Lower Flow
• Operation: Mechanical (Spring)

Specifications

Features

• Minimizes material waste caused by paint shear
• Maximizes service life with Ultralife ceramic coated parts
• Best-in-class pressure constant performance across broad flow rate range
• Low profile, compact design
• Backwards compatibility for easy installation and replacement
• Innovative flow path geometry provides industry-leading low shear capability

Applications

• High solid materials coating
• Shear sensitive materials
• Paint finishing applications
• Industrial coating processes

Compatible Equipment

• Intelligent Paint Kitchen (IPK) systems
• Mechanical (Spring) Operated BPR

Related Parts

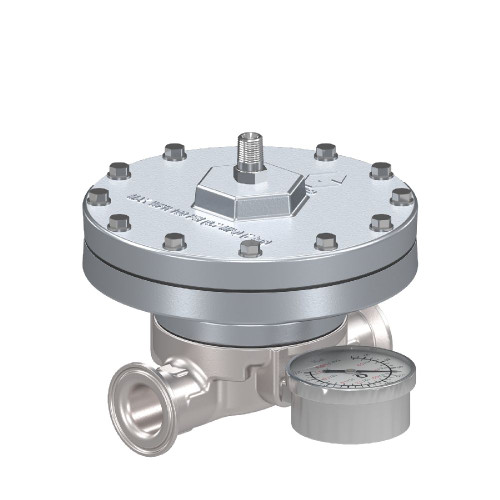

• 25R487

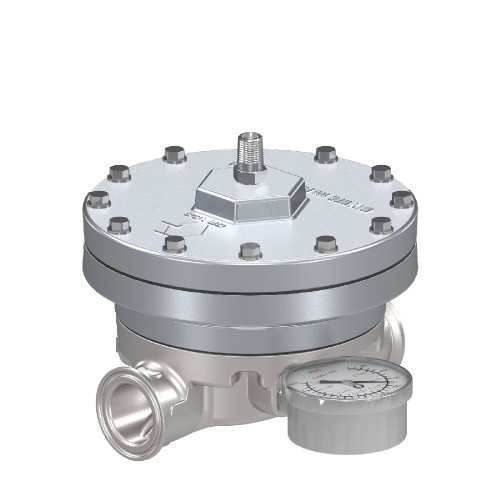

• 25R457

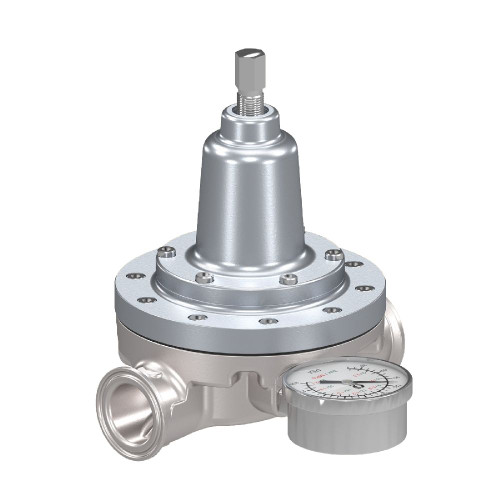

• 25R647
• 25T509
• 25T508
• 25R842
• 25T507

Spring-operated mechanical back pressure regulator with sanitary tri-clamp connections. Works with IPK control to reduce energy consumption and paint shear. Manual 3A7527 provides installation and operation instructions. This is a mechanical (spring) type back pressure regulator with lower flow capacity. Temperature range is 0°C to 50°C. Type of Protection 'h' applied is constructional safety 'c'. This is the lower flow version of a mechanical spring-operated back pressure regulator. Part 25R647 is the higher flow version. The diagram shows this as part of a conversion kit system - to convert to air operation, parts need to be removed and replaced with air version kit parts (reference page 13).

Reference Manuals

• 345172 (Page 1)
• 3A7527 (Page 2)
