Item #: 25U615
Price: $4,050.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

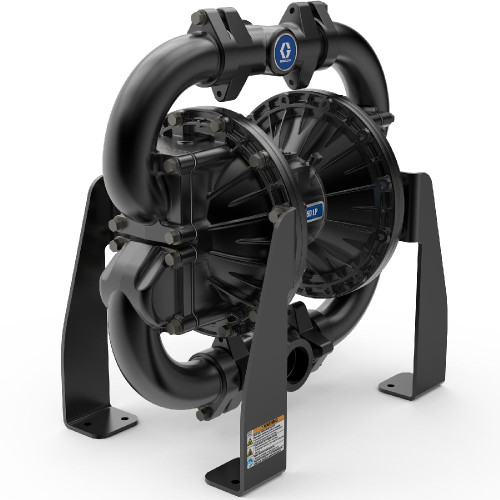

GRACO 25U615 - Husky 2150LP Large Particle AL Air Diaphragm Pump, 150 gpm, 2" BSPT Porting, Flapper Valve, SP Diaphragms, BSPT (British Standard Pipe Thread)
Additional Specifications
Specifications
| Air Exhaust Port Size (in) | 0.75 |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 0.5 |
| Air Inlet Thread Type | NPT |
| Center Section Material | Aluminum |
| Check Material | Buna-N |
| Connection Type | Threaded |
| Diaphragm Compatible Material | Santoprene |
| Diaphragm Material | Santoprene |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | Center Port |
| Maximum Air Consumption (SCFM) | 175 |
| Maximum Air Pressure (MPa) | 0.83 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 145 |
| Maximum Flow Rate (GPM) | 150 |
| Maximum Fluid Pressure (MPa) | 0.83 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Solid Size (in) | 1.8 |
| Minimum Operating Temperature (°F) | -40 |
| Model | Husky |
| Motor Type | Air |
| Power Source | Air |
| Series | 2150LP |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 76 |
| Wetted Material | Aluminum |
Compatible Equipment
Related Parts
ATEX T-code rating is dependent on the temperature of the fluid being pumped. Fluid temperature is limited by the materials of the pump interior wetted parts. Configuration number indicates BSPBN (BSPT porting). Part of the 25U6xx series of Husky 2150LP pumps with various porting configurations.
