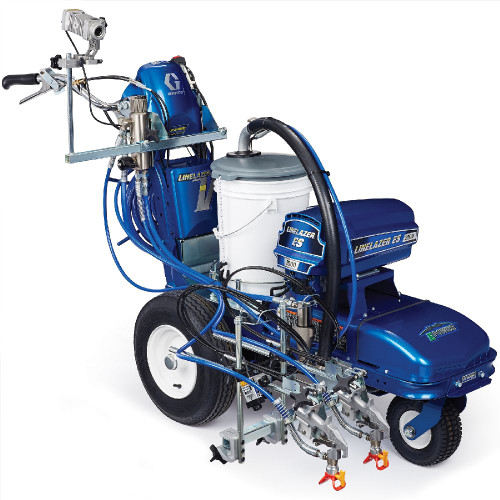

GRACO 25U679 - LineLazer V ES 2000 HP Automatic Series Battery-Powered Airless Line Striper, 1 Auto Gun, 1 Manual Gun, 3300 PSI

Professional battery-powered line striper with dual gun configuration featuring automatic paint gun system for simplified operation. Delivers quiet, fume-free performance with extended run time using advanced LITHIUM battery technology. Features ExactFit speed control and low vibration for more accurate lines, with higher output than electric models.

The LineLazer V ES 2000 HP Automatic Series with 1 Auto Gun and 1 Manual Gun provides automatic, fume-free, noise-free & vibration-free striping performance on any indoor job as well as the power and features to deliver the highest productivity needed to tackle large outdoor applications.

Additional Specifications

• Flow Rate: 1.10 gpm maximum
• Max Working Pressure: 3300 PSI maximum tip size 0.033
• Maximum Tip Size: 0.033
• Maximum Pressure: 3300 PSI
• Maximum Flow: 1.10 gpm
• Hose Length: 3/8 in x 22 ft
• Switch Tip: LineLazer RAC 5
• Easy Out Filter: 50 Mesh
• Intake Type: QuikAccess
• Pod Type: Chromex
• Cylinder Type: Hardened Stainless Steel
• Tracking System: SmartControl
• Series: HP Automatic Series
• Power Source: LITHIUM battery

Specifications

Features

• HP Automatic technology for consistent striping
• Dual gun capability (1 automatic, 1 manual)
• SmartControl tracking system
• LineLazer RAC 5 switch tip system
• QuikAccess intake system
• Hardened stainless steel cylinder

Applications

• Pavement marking
• Line striping
• Professional marking applications
• Professional line striping applications
• Parking lot marking
• Road marking and striping

Compatible Equipment

• LineLazer V ES 2000 series equipment
• LineLazer RAC 5 SwitchTip spray tips
• LineLazer Easy Out manifold filters
• LaserGuide 2000 laser-guided layout system

Related Parts

• 25U646 - LineLazer ES 1500 Standard
• 25U675 - LineLazer ES 1000 Standard 1 Battery
• 25U677 - LineLazer ES 1000 Standard 2 Battery
• 25U681 - LineLazer V ES 2000 Standard 2 Battery
• 25U685 - LineLazer V ES 2000 Standard 2 Battery
• 25U682 - LineLazer V ES 2000 Standard 2 Battery
• 25U686 - LineLazer V ES 2000 Standard 2 Battery
• 25U687 - LineLazer V ES 2000 Standard 2 Battery
• 25U674 - LineLazer ES 1000 LITHIUM 1 BATTERY
• 25U676 - LineLazer ES 1000 LITHIUM 2 BATTERIES

Part of the LineLazer V ES 2000 series with HP Automatic technology for professional pavement marking applications Part of the LineLazer V ES 2000 HP Automatic Series with maximum electric striping productivity. This model provides the highest performance in the battery-powered line striper category. Part of the LineLazer V ES 2000 HP Automatic Series family, featuring maximum electric striping productivity with LineDrriver ES technology

Reference Manuals

• 344385 (Page 8) LineLazerBrochure (ANZ ONLY)
• 3J0284EN (Page 4) EN-B
• 3J0284EN - B (Page 4)
• 3A9033 (Page 4) LineLazer® ES 1000 / ES 2000 Lithium Airless Line Striper, Operation, Repair, Parts
