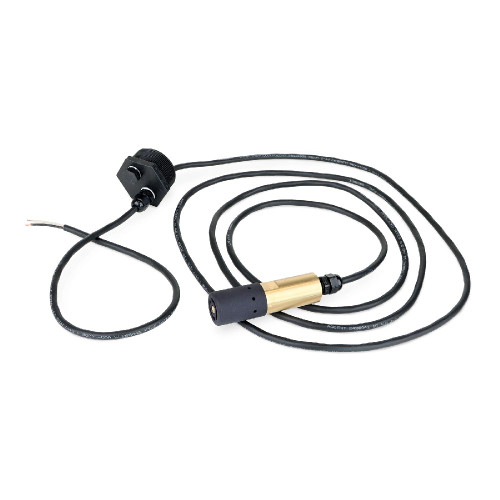

GRACO 25V476 - Level Sensor Low Level, 10 ft

Fluid Defender Level Sensor monitors lubrication fluid tank levels in above ground, stationary tanks. This low level sensor provides signal to Fluid Defender when a tank becomes empty, warning of potential pump cavitation.

Specifications

• Length: 3 m (9.84 ft)
• Float Type: Low Level
• Cable Length: 10 ft
• Intended Use: Motor Oil, Waste Oil, ATF, Antifreeze, Diesel, WVS
• Minimum Specific Gravity: 0.75
• Amp Rating: 0.1 amp
• Maximum Fluid Viscosity: 2,000 centipoise
• Temperature Range: 14°F to 122°F (-10°C to 50°C)
• Minimum Detectable Tank Level: 2 in (5.1 cm)
• Minimum Head Space: 5.5 in (2.54 cm)
• Sensor Type: Single, Low Level

Features

• Low level detection with 3 meter cable length
• Compatible with various fluid types including motor oil, waste oil, ATF, antifreeze, and diesel
• Wide temperature range operation (-10°C to 50°C)
• Low amp draw (0.1 amp)
• Handles high viscosity fluids up to 2,000 centipoise

Applications

• Tank level monitoring and control
• Overfill protection systems
• Pump run-away prevention
• Bulk fluid management and tracking
• Industrial fluid handling systems

Compatible Equipment

• GRACO Fluid Defender (25V654)
• GRACO Pulse Fluid Defender (25V655)
• above ground, stationary lubrication fluid tanks

Related Parts

• 25V654 - Fluid Defender
• 25V655 - Pulse Fluid Defender
• 25V475 - High Level Float
• 25V477 - Low Level 9 m Float
• 25V478 - Dual Level 3 m Float
• 25V479 - Dual Level 9 m Float
• 25V482 - Air Control Solenoid
• 25V577

Part of the GRACO Fluid Defender system family for comprehensive tank monitoring and control applications Part of Fluid Defender Level Sensor family. Not for use with gasoline or Class I NFPA 30 flammable fluids. Not approved for explosive atmospheres or hazardous locations. For professional use only.

Reference Manuals

• 353438 (Page 2) Fluid Defender
• 3A7279 (Page 1) Fluid Defender Level Sensor
