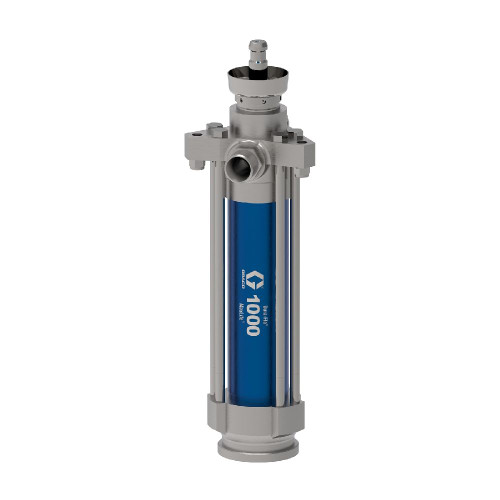

GRACO 25V502 - Kit, Pump, 18Cm-Cs, 1000cc, Uh-L, Stainless Steel, 4500 PSI

1000cc Lower with CS Body, SST with Severe Duty Rod Construction, SST with Severe Duty Cylinder Construction, SST Ball Construction, Tungsten Carbide Seat Construction, 3 UHMWPE / 2 leather Piston Packings, 3 UHMWPE / 2 leather Throat Packings

The Dura-Flo lower is legendary in the world of high-pressure pumps — holding up to the most severe applications and materials. The new Dura-Flo XL has an incredibly long 11.25 inch stroke — resulting in less change-overs, more paint per stroke and longer overall life.

Additional Specifications

• Max Working Pressure: 4500 PSI (31 MPa, 310 bar)
• Material: SST with Severe Duty coating
• Displacement: 1000cc
• Duty Rating: Severe Duty
• Model: 25U989
• Type: Dura-Flo pump
• Size: 1000cc
• Body Type: CS
• Rod Construction: SST with Severe Duty
• Cylinder Construction: SST with Severe Duty
• Ball Construction: SST
• Seat Construction: Tungsten Carbide
• Piston Packings: 3 UHMWPE / 2 leather
• Throat Packings: 3 UHMWPE / 2 leather
• Duty Type: SevereDuty

Specifications

Compatible Equipment

• model 25U989
• 1000cc pump systems
• Dura-Flo Lowers

Related Parts

• 25V506 - MaxLife 1000cc
• 25V505 - SevereDuty 1400cc
• 25V507 - MaxLife 1400cc

Part of Dura-Flo pump family with different displacements and duty ratings. Listed as reference 23 in the parts list with quantity 1. Severe-Duty model designed for wear and corrosion resistance in addition to low friction characteristics. Uses MaxLife proprietary GRACO hard coating for smooth, hard wear surface with no porosity while providing corrosion/chemical resistance. This is a complete lower assembly. Individual component parts are listed in the table with their corresponding part numbers for this 25V502 lower. Packing repair kit 222848 available for 1000cc lowers. 1000cc Packings equivalent to Dura-Flo 1800 series.

Reference Manuals

• 3J0419EN (Page 3) EN-A
• 3J0419EN - A (Page 3)
• 3A9247 (Page 11) RoadLazer HPS 135 and HPS 180 Hydraulic Pumping Systems, Operation and Parts
• 3A9259 (Page 3) Dura-Flo Lowers, Repair, Parts
