GRACO 25V505 - Kit, Pump, 24Cm-Cs, 1400cc, Uh-L, 3400 PSI

GRACO 25V505 - Kit, Pump, 24Cm-Cs, 1400cc, Uh-L, 3400 PSI

GRACO 25V505 - Kit, Pump, 24Cm-Cs, 1400cc, Uh-L, 3400 PSI

Item #: 25V505

Price: with strikethrough $18,290.00

Retail Price:

Sale Price: Price $17,156.62

Expected ship date is Jun 23rd 2026

QTY:

Ships in 2-3 weeks

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Related Items

Item Description
GRACO 25V505 - Kit, Pump, 24Cm-Cs, 1400cc, Uh-L, 3400 PSI

The Dura-Flo lower is legendary in the world of high-pressure pumps — holding up to the most severe applications and materials. The new Dura-Flo XL has an incredibly long 11.25 inch stroke — resulting in less change-overs, more paint per stroke and longer overall life.
Additional Specifications
- Max Working Pressure: 3400 PSI (23 MPa, 234 bar)
- Material: SST with Severe Duty construction
- Capacity: 1400cc
- Duty Type: Severe Duty
- Model: 26D809
- Size: 1400cc
- Body: CS
- Rod Construction: SST with Severe Duty
- Cylinder Construction: SST with Severe Duty
- Ball Construction: SST
- Seat Construction: Tungsten Carbide
- Piston Packings: 3 UHMWPE / 2 leather
- Throat Packings: 3 UHMWPE / 2 leather
Specifications

Model Dura-Flow
Series XL
Type Pump Lower

Compatible Equipment
- model 26D809
- 1400cc pump systems
Related Parts
- 25V502 - 1000cc Lower, Severe Duty (model 25U989)
- 25V506 - 1000cc Lower, MaxLife (model 26D813)
- 25V507 - 1400cc Lower, MaxLife (model 26D814)
This is part of the PUMP, Dura-Flo family listed under reference 23 Part of the 1400cc Lowers family. Features Severe-Duty construction for wear and corrosion resistance in addition to low friction characteristics.

Reference Manuals
- 3J0419EN (Page 3) EN-A
- 3J0419EN - A (Page 3)
- 3A9247 (Page 11) RoadLazer HPS 135 and HPS 180 Hydraulic Pumping Systems, Operation and Parts
- 3A9259 (Page 3) Dura-Flo Lowers, Repair, Parts
Specifications
GRACO 25V505 - Kit, Pump, 24Cm-Cs, 1400cc, Uh-L, 3400 PSI

The Dura-Flo lower is legendary in the world of high-pressure pumps — holding up to the most severe applications and materials. The new Dura-Flo XL has an incredibly long 11.25 inch stroke — resulting in less change-overs, more paint per stroke and longer overall life.
Additional Specifications
- Max Working Pressure: 3400 PSI (23 MPa, 234 bar)
- Material: SST with Severe Duty construction
- Capacity: 1400cc
- Duty Type: Severe Duty
- Model: 26D809
- Size: 1400cc
- Body: CS
- Rod Construction: SST with Severe Duty
- Cylinder Construction: SST with Severe Duty
- Ball Construction: SST
- Seat Construction: Tungsten Carbide
- Piston Packings: 3 UHMWPE / 2 leather
- Throat Packings: 3 UHMWPE / 2 leather
Specifications

Model Dura-Flow
Series XL
Type Pump Lower

Compatible Equipment
- model 26D809
- 1400cc pump systems
Related Parts
- 25V502 - 1000cc Lower, Severe Duty (model 25U989)
- 25V506 - 1000cc Lower, MaxLife (model 26D813)
- 25V507 - 1400cc Lower, MaxLife (model 26D814)
This is part of the PUMP, Dura-Flo family listed under reference 23 Part of the 1400cc Lowers family. Features Severe-Duty construction for wear and corrosion resistance in addition to low friction characteristics.

Reference Manuals
- 3J0419EN (Page 3) EN-A
- 3J0419EN - A (Page 3)
- 3A9247 (Page 11) RoadLazer HPS 135 and HPS 180 Hydraulic Pumping Systems, Operation and Parts
- 3A9259 (Page 3) Dura-Flo Lowers, Repair, Parts

Quick view

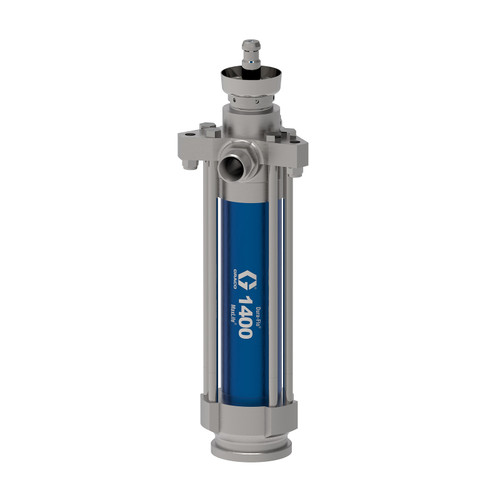

GRACO 25V507 - Kit, Pump, 24Cm-Cs, 1400cc, Max, 3400 PSI
