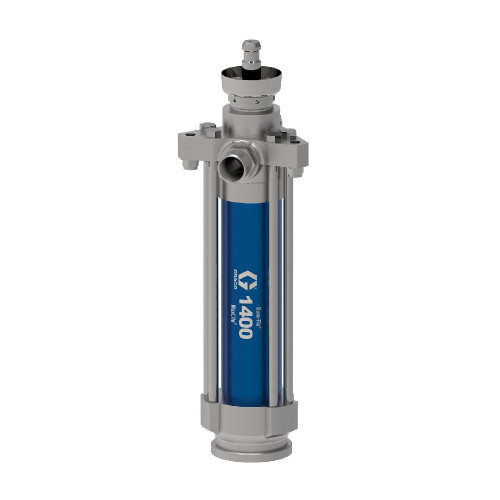

GRACO 25V507 - Kit, Pump, 24Cm-Cs, 1400cc, Max, 3400 PSI

1400cc Lower with CS Body, SST with MaxLife rod and cylinder construction, SST ball construction, Tungsten Carbide seat construction, 3 UHMWPE / 2 leather piston packings, 3 UHMWPE / 2 leather throat packings

The Dura-Flo lower is legendary in the world of high-pressure pumps — holding up to the most severe applications and materials. The new Dura-Flo XL has an incredibly long 11.25 inch stroke — resulting in less change-overs, more paint per stroke and longer overall life.

Additional Specifications

• Max Working Pressure: 3400 PSI (23 MPa, 234 bar)
• Material: SST with MaxLife coating
• Displacement: 1400cc
• Type: MaxLife
• Series: MaxLife
• Model: 26D814
• Size: 1400cc
• Body Type: CS
• Rod Construction: SST with MaxLife
• Cylinder Construction: SST with MaxLife
• Ball Construction: SST
• Seat Construction: Tungsten Carbide
• Piston Packings: 3 UHMWPE / 2 leather
• Throat Packings: 3 UHMWPE / 2 leather

Specifications

Compatible Equipment

• model 26D814
• 1400cc pumps
• Dura-Flo 2400 series

Related Parts

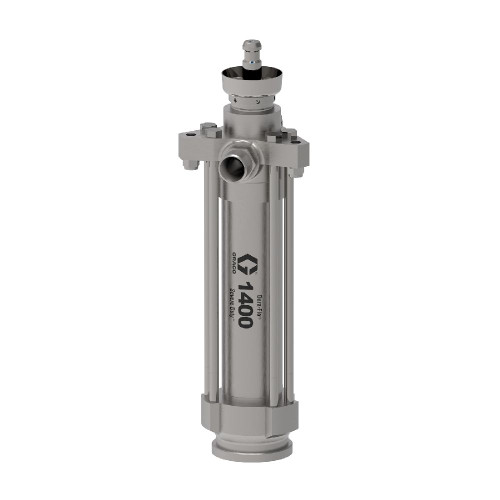

• 25V502 - 1000cc Lower, Severe Duty (model 25U989)
• 25V505 - 1400cc Lower, Severe Duty (model 26D809)

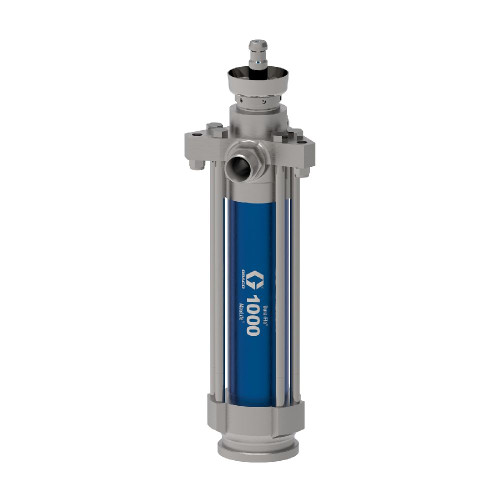

• 25V506 - 1000cc Lower, MaxLife (model 26D813)
• 25V502 - SevereDuty 1000cc
• 25V506 - MaxLife 1000cc
• 25V505 - SevereDuty 1400cc

Kit Contents

• 17L297 - ROD, displacement
• 25U016 - NUT, packing
• 26D953 - FITTING, outlet
• 109213 - O-RING
• 184072 - SEAL, acetal (2)
• 25V544 - CYLINDER, pump
• 184297 - GUIDE, ball
• 108001 - BALL, metallic
• 109266 - GLAND, packing
• 222802 - VALVE, housing
• 184236 - PACKING, vee, leather (2)
• 184282 - GUIDE, ball
• 222838 - VALVE, housing
• 102974 - BALL, metallic
• 184275 - HOUSING, intake

This is part of the PUMP, Dura-Flo series. Listed under reference 23 with quantity 1. MaxLife is a proprietary GRACO hard coating for piston pump rods and cylinders. MaxLife provides a smooth and hard wear surface with no porosity while providing corrosion/chemical resistance. 1400cc Packings equivalent to Dura-Flo 2400 series. Packing Repair Kit: 222881. UHMWPE and Leather Packings standard on all Lowers.

Reference Manuals

• 3J0419EN (Page 3) EN-A
• 3J0419EN - A (Page 3)
• 3A9247 (Page 11) RoadLazer HPS 135 and HPS 180 Hydraulic Pumping Systems, Operation and Parts
• 3A9259 (Page 3) Dura-Flo Lowers, Repair, Parts
