GRACO 262805 - Magnum X7 Electric TrueAirless Sprayer

Item #: 262805

Price: $770.00

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Essential Accessories

Item Description

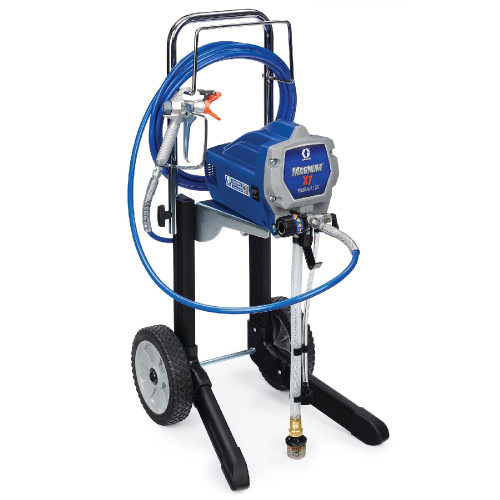

GRACO 262805 Magnum X7 Electric TrueAirless Sprayer
DIY homeowners and handymen will save time and money with the Magnum X7 with built-in cart. Tackle any interior project, exterior houses, fences and decks. The X7 supports a larger tip size for spraying heavier coatings and the convenient cart makes any painting project faster and easier.

Hardened Stainless Steel Piston Pump - Delivers high pressure power to spray unthinned paints
Flexible Suction Hose - Spray directly from 1 or 5 gallon paint container
Convenient Cart - Easily move sprayer around on the job
Paint Saver Pail Hook - Effortlessly move 5 gallon paint container with cart
TrueAirless Spray Tip with SoftSpray Technology - greater control and less overspray with a wide range of coatings
Power Flush Adapter - Connects to a garden hose for fast and easy cleaning
PushPrime - Fast and reliable start-up every time
Adjustable Pressure Control - Easy control of paint flow

Specifications

Amperage (A)	9.0
Compatible Tip Size (in)	0.009, 0.011, 0.013, 0.015, 0.017
Engine Size (HP)	0.625
Fluid Outlet Size (in)	1/4
Fluid Outlet Thread Type	NPSM
Frame Configuration	Cart
Includes	SG2 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 25 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide
Inlet Paint Strainer	35 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM)	0.31
Maximum Hose Length (ft)	100
Maximum Tip Size (in)	0.017
Maximum Tip Size 1 Gun (in)	0.017
Maximum Working Pressure (MPa)	20.7
Maximum Working Pressure (psi)	3000
Minimum Generator Power (W)	2500
Model	Magnum
Motor Type	Universal
Number of Guns	1
Overall Height (in)	37.0
Overall Length (in)	19.3
Overall Width (in)	15.3
Phase	1
Power Rating (HP)	0.625
Power Rating (W)	466.1
Power Rating (kW)	0.47
Power Source	Electric
Pressure Control Type	Adjustable
Pump Rod Type	Hardened Stainless Steel
Pump Sleeve Material	Stainless Steel
Pump Type	Piston
Recommended Annual Usage (gal)	125
Series	X7
Standards Met	ETL Certified, ETL File #100125967MIN-001
Type	Airless Sprayer
Voltage (V)	120
Weight (lb)	27
Wetted Material	Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE
Amperage (A)	9.0
Engine Size (HP)	0.625
Fluid Outlet Size (cm)	0.635
Fluid Outlet Size (mm)	6.35
Fluid Outlet Thread Type	NPSM
Frame Configuration	Cart
Includes	SG2 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 25 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide
Inlet Paint Strainer	35 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min)	1.2
Maximum Hose Length (m)	30
Maximum Tip Size (cm)	0.0432
Maximum Tip Size (mm)	0.4318
Maximum Tip Size 1 Gun (cm)	0.0432
Maximum Tip Size 1 Gun (mm)	0.4318
Maximum Working Pressure (MPa)	20.7
Maximum Working Pressure (bar)	207
Maximum Working Pressure (kPa)	20700
Minimum Generator Power (W)	2500
Model	Magnum
Motor Type	Universal
Number of Guns	1
Overall Height (cm)	94.0
Overall Height (mm)	940
Overall Length (cm)	49
Overall Length (mm)	490
Overall Width (cm)	38.9
Overall Width (mm)	389
Phase	1
Power Rating (HP)	0.625
Power Rating (W)	466.1
Power Rating (kW)	0.47
Power Source	Electric
Pressure Control Type	Adjustable
Pump Rod Type	Hardened Stainless Steel
Pump Sleeve Material	Stainless Steel
Pump Type	Piston
Series	X7
Standards Met	ETL Certified, ETL File #100125967MIN-001
Type	Airless Sprayer
Voltage (V)	120
Weight (kg)	12
Wetted Material	Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE
