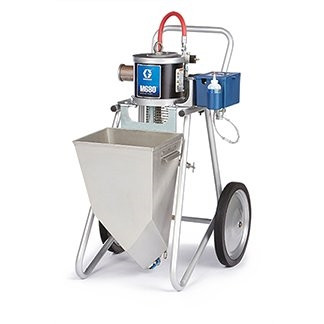

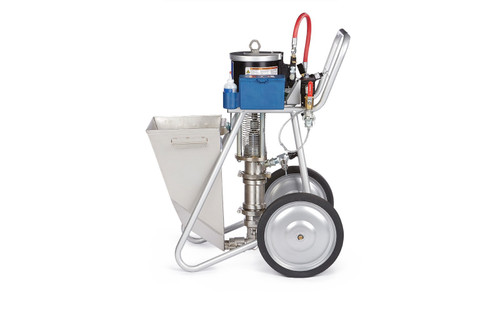

GRACO 262927 - ToughTek M680a Complete Piston Pump Package, HTX 680 Applicator, Flex Hose Applicator, Stainless Steel Hopper, 1000 PSI

ToughTek M680 Stainless Steel hopper designed for big performance in a small package. This durable hopper provides convenient storage of applicator tips and spare parts with heavy-duty steel construction for long life and everyday performance.

Specifications

• Flow Rate: 10.8 GPM
• Max Working Pressure: 1000 PSI
• Material: Stainless Steel
• Material Output: 10.8 gpm (41 lpm)
• Max Working Pressure: 1000 PSI (69 bar)
• Max Particle Size: 3/16 in (5 mm)
• Max Hose Length: 100 ft (30.5 m)
• Hopper Capacity: 10 gal (76 l)
• Weight: 250 lb (95 kg)

Features

• 10 gallon heavy-duty stainless steel hopper with straight sides for easy cleaning
• Durable quick access piston-pump for fast and easy maintenance
• Oversized inlet and internal passages for trouble-free pumping
• Proven piston pump performance with double-displacement stainless steel piston pump technology
• Compact & portable design minimizes hose lengths/hassles by bringing the sprayer closer to work
• Easy to transport

Applications

• Applying water-based epoxy or mortar to surfaces
• Finishing jobs 2X faster than troweling
• Professional spraying applications where mobility and performance are key
• Texture spraying
• Material application
• Professional finishing work

Compatible Equipment

• ToughTek M680 system
• HTX gun
• Flex Pute applicators

Related Parts

• 262909 - Toughtek M680A Piston Pump Package, HTX 680 Applicator, Stainless Steel Hopper
• 24T834 - ToughTek M680a Piston Pump Package, Flex Hose Applicator, Stainless Steel Hopper
• 24T835 - ToughTek M680a Bare Piston Pump System, Flex Hose Applicator
• 24T836 - ToughTek M680a Bare Piston Pump System, Stainless Steel Hopper
• 24T837 - ToughTek M680a Bare Piston Pump System

Kit Contents

• 24T837 - Pump installed on Cart (includes air motor, stainless steel pump lower, zero cavity relief valve, 1 in. male camlock outlet, air controls, and the two wheel cart)
• Basic Spare Parts Kit (included in tool box) - includes gaskets for cam and groove fittings, complete pump repair soft seal kit, and pilot tube repair fittings
• 24T853 - Feed Hopper (includes 10 gallon (38 liter) stainless steel hopper, hopper mounting, straight and 90° 2 in. female cam lock outlet)
• 24T852 - Standard 35 ft (1.7 m) Hose Bundle (fluid hose portion includes 1 in. x 25 ft fluid hose, 3/4 x 10 ft fluid whip hose, stainless steel shut off ball valve, and fluid cam lock ends. Air line portion includes 38 ft air line with pump pilot line, air line quick disconnects, and mesh wrap. Includes 6 mil polyurethane bag tubes for fluid lines and air lines)
• 24T947 - Flex Applicator (includes 23 in. (58 cm) flexible hose with cam lock fluid inlet, angled spray head, spray air volume control, spray air shut off valve, and motor pilot signal control valve, adjustable positions center air injection tube, rubber tip retainer, and includes three tip sizes)
• 24U209 - HTX 680 Manifold Applicator (includes cam lock fluid inlet, angled aluminum spray head, spray air volume control, spray air shut off valve, and motor pilot signal control valve. Uses venturi-type air injection fluid nozzles and aluminum screw on tip retainer. Includes four nozzle sizes, a Fine Finish adapter, and four Fine Finish tips)
• Additional Spare Parts
• 24R254 - Additional 25 ft (7.6 m) Hose Kit

Part of the ToughTek M680 air-powered motor sprayer system that delivers big performance in a small package Complete system with stainless steel hopper for durability and corrosion resistance This appears to be the most complete model package in the lineup, including all available components and accessories. See Parts, page 37, for additional details regarding what is included with each model.

Reference Manuals

• 3J0521EN (Page 7)
• 332612 (Page 6) ToughTek M680a Mortar Sprayer
