GRACO 26A070 - ProDispense Control Model Assembly Base System controls

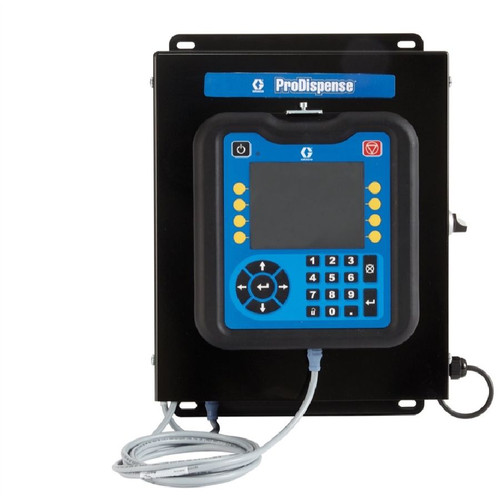

The system control module assembly is a comprehensive base system that includes 1 advanced display module (ADM) and 1 fluid control module (26A134) which controls 2 fluid panels. This is the foundation component for building a customizable fluid dispensing system.
This cost-effective and user-friendly electronic system dispenses preset amounts of fluids.
ProDispense allows durable goods manufacturers to quickly and accurately fill cavities with oil, grease, water, or other industrial fluids in assembly line environments, where accurate dispensing is essential.
- Control 2 fluid panels with this base system.
- Deliver up to 8 different fluids at multiple dispense points, and accurately measure volume.
Additional Specifications
- Maximum Fluid Panels: 8
- Operating Voltage: 100-240 VAC, Single Phase
| For Use With | ProDispense Electronic Fluid Dispense and Meter System |
| Frequency (Hz) | 50/60 |
| Includes | 1 Advanced Display Module (ADM), 1 Fluid Control Module (26A134) that controls 2 fluid panels |
| Type | Controller |
| Weight (lb) | 25 |
Features
- Includes advanced display module (ADM) for system monitoring and control
- Integrated fluid control module for managing 2 fluid panels
- Expandable system architecture - can add up to 3 FCM modules per base system
- Modular design allows customization based on application needs
Applications
- Multi-fluid dispensing operations
- Industrial fluid control systems
- Automated dispensing applications requiring precise control
Compatible Equipment
- 26A134 fluid control modules
- Various fluid panel configurations (26A129, 26A131, 26A130, 26A132, 26A165, 26A247, 26A071)
Related Parts
- 26A134
- 26A129
- 26A131
- 26A130
- 26A132
- 26A165
- 26A247
- 26A071
Kit Contents
- Advanced Display Module (ADM)
- 26A134 - Fluid Control Module
This is a base system assembly that serves as the foundation for building custom fluid dispensing systems. Additional FCM modules (26A134) are needed only if more than 2 fluid panels need to be controlled. Approvals include CE, EAC, ETL Intertek, CSA STD C22.2 NO. 286, UL STD 508A. Control panel shown in product images with voltage 100-240 VAC, frequency 47-63 Hz, full load current 1.5 AMPS MAX.
