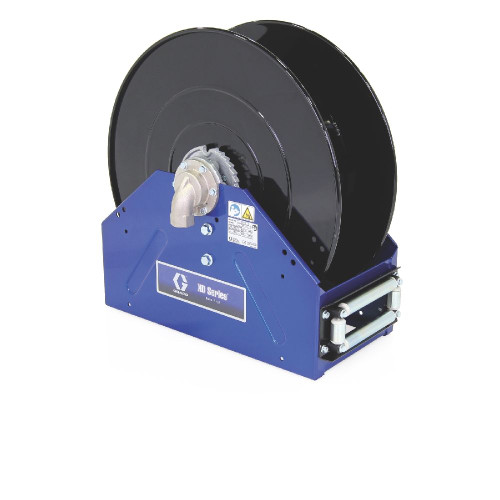

GRACO 26A140 - XD40 Antifreeze Hose Reel, 1" x 50 ft, Blue, 600 PSI

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
• Meets Worldwide Needs - Built standard with 90° elbow with NPT threads

Additional Specifications

• Max Working Pressure: 600 PSI (4.1 MPa, 41 bar)
• Material: Nitrile/Buna-n for anti-freeze
• Spring: D
• Color: Blue
• Inlet Seal Material: N - Nitrile/Buna-n for anti-freeze
• Pressure Designation: LP - Low pressure applications such as Air/Water, Fuel, and Waste Oil Evacuation, typically under 300 PSI (2.1 MPa, 21 bar)
• Port Size: 1 in.
• Spring Designation: D
• Model Family: XD4010DLPN
• Model Type: XD4010DLPN
• Npt Model: 26A140
• Bspp Model: NA
• Bspt Model: NA

Compatible Equipment

• XD Model hose reel applications
• Air/Water, Fuel, and Waste Oil Evacuation applications
• Aplicaciones de presión baja: aire, agua, combustible, petróleo y evacuación de residuos bajo 300 PSI
• Air/Water, Fuel, and Waste Oil Evacuation applications under 300 PSI

Related Parts

• 26A141
• 25A142
• 26A142

This is a bare reel model (NPT model) with D spring designation for low pressure applications. BSPP and BSPT models are listed as NA for this part number. Este es un carrete de manguera modelo XD, bastidor tamaño 40, puerto de 1 in., resorte D, baja presión. Material de junta de entrada N - Nitrilo/Buna-n para anticongelante. Los modelos BSPP y BSPT aparecen como N/D para este modelo. This is a bare reel model with D spring (low pressure), designed for anti-freeze applications with Nitrile/Buna-n inlet seal material. BSPP and BSPT models are not available (NA) for this configuration.

Reference Manuals

• 332203 (Page 3)
• 332399 (Page 3)
• 3A2990 (Page 3)
