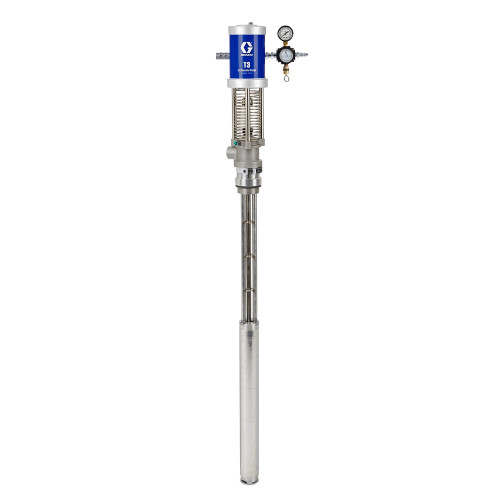

GRACO 26A304 - T3 Supply Pump (SS): 3:1 Fluid to Air Ratio, 100 PSI
GRACO 26A304 T3 stainless steel transfer pump with 3:1 ratio engineered for more output, better performance and great value. Features quick-disconnect for easier drum removal and faster change-outs, with improved fluid intake to easily handle higher viscosity materials even in cold conditions.
Transfer Pumps are required to move A and B materials to the Reactor Spray Systems. The T3 Transfer Pump combines Graco’s proven Merkur air-motor and popular T2 stainless steel lower. The T3 is a 3:1 ratio pump – using less air pressure to provide the same fluid pressure required.
- Easier to maneuver - The overall height of the T3 is 3.7 inches (9.4 cm) shorter above the drum than the T2, making it easier to remove from the drum inside of a spray rig.
- More quiet – Studies show the T3 Transfer Pump is about 3x more quiet than the T2 Transfer Pump.
- Less maintenance - the Merkur air-motor is based on air pilot valve technology. The air-motor switching is purely pneumatic. This differs from T1 and T2 Transfer Pumps, which use a mechanical reversing mechanism in the air-motor.
Additional Specifications
- Flow Rate: 17 lpm (4.5 gpm) maximum continuous
- Max Working Pressure: 6.8 bar (100 PSI) air input, 21.7 bar (315 PSI) fluid output
- Maximum Ambient Temperature: 49°C (120°F)
- Maximum Fluid Temperature: 88°C (190°F)
- Weight: 10 kg (22 lb)
- Height: 128 cm (50.3 in)
- Manual Number: 345180
- Maximum Input Air Pressure: 6.8 bar (100 PSI, 0.68 MPa)
- Maximum Output Fluid Pressure: 21.7 bar (315 PSI, 2.17 MPa)
- Pump Type: piston pump
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Compatible Material | Polyurethane Foam, Polyurea |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Includes | Fluid Supply Kit, Air Hose Kit |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (MPa) | 0.69 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Working Pressure (MPa) | 2.2 |
| Maximum Working Pressure (psi) | 315 |
| Pump Ratio | 3:1 |
| Type | Pneumatic Piston Pump |
| Weight (lb) | 22 |
| Wetted Material | Stainless Steel, PTFE |
Features
- 3:1 fluid to air ratio for efficient operation
- Stainless steel construction for corrosion resistance
- 17 lpm (4.5 gpm) maximum continuous output
- High temperature capability up to 88°C (190°F) fluid temperature
- Compact design at 128 cm height
- T2 design doubles the output from 9.5 to 19 liter, 2.5 to 5.0 gpm
Applications
- Fluid transfer operations
- Industrial pumping applications
- Chemical transfer where stainless steel construction is required
- High-output proportioning applications
- Drum transfer applications
- Cold condition material handling
Compatible Equipment
- Drum riser tube systems
- Portable spray systems
Related Parts
- 247834 - T3 Carbon Steel version
- 242988 - T3 pump package with 2 pumps and fluid supply kit
- 242987 - T3 pump package with 2 pumps, fluid supply kit and air hose kit
- 250296 - T3 Carbon Steel pump package with 2 pumps and fluid supply kit
- 250295 - T3 Carbon Steel pump package with 2 pumps, fluid supply kit and air hose kit, T1 296200, T2 295616, T3 242834
- 256200 - Stainless T1 Supply Pump ( SS): 2:1 Fluid to Air Ratio, 25 Bar (360 PSI
This is the individual T3 pump in stainless steel. Package options are available that include multiple pumps and supply kits. Part of GRACO's T3 pump series. The T3 pumps are offered in both carbon steel and stainless steel versions and are shorter than other pumps making it easier to remove the pump from the drum inside of a spray rig. This is a supply pump designed to work with drum riser tube configurations for transferring higher viscosity materials
Reference Manuals
- 300767 (Page 3) T1/T2/T3/T4 Transfer Pumps
- 349104 (Page 15) Reactor Parts and Accessories Brochure
- 350440 (Page 2) T4 Transfer Pump
- null (Page 2)
- 309815 (Page 12) Reactor Feed Pump Kits, Operation and
