GRACO 26A855 - GLCx Controller w/14-Pin Connector, 2-Wire, 10 ft Power In & 12-Wire Color Coded 20 ft Cable, Flying Leads

The GLC X controller with 6-m (20-ft) cable is a Bluetooth-enabled smart device that pairs with GRACO's Compact Dyna-Star lubrication systems and Auto Lube mobile app. Features an easy-to-read high-contrast screen that displays text codes, faults and other data clearly in any ambient light. Offers real-time system reporting with programmable and customizable functions for monitoring lubrication levels, configuring settings, tracking history and sharing important diagnostics.

Features:

The powerful, new, easy-to-use Graco GLC X auto lubrication controller captures more information more ways, so operators, technicians and managers can make faster, smarter decisions that drive more productivity.

• Indoor/Outdoor Mountable (IP69K) - Designed to withstand all the elements, including high-pressure washes and inclement weather encountered at the harshest and dirtiest sites.
• Easy-to-Read LED Screen - Soft amber LED lighting capable of displaying text codes, faults and other data clearly in any ambient light without distracting operators.
• Real-Time System Reporting - Program and display a wide range of customizable functions – including lubrication intervals, pressure limits, lubricant levels and more.
• Smart Device and Mobile App - With the Auto Lube app, monitor lubrication levels, configure settings, track history and share important diagnostics.
• Universal Compatibility - One controller for all your lubrication systems simplifies training and inventory.
• Active Current Protection - 9-30 VDC, 10 Amp continuous power supply protects grease pumps from over current and entire system from misfires, electrical shorts and surges.

Additional Specifications

• Length: 20 ft cable
• Cable Length: 20 ft
• Connectivity: Bluetooth-enabled
• Inputs Outputs: 4/2
• Power Source: 9-30 VDC
• Modes: Pressure/Cycle/Timer
• Dimensions: 92 mm (3.62 in) wide x 169 mm (6.66 in) high x 50 mm (1.98 in) deep
• Operating Temp: -30°C to 70°C (-22°F to 158°F)
• Protection Grade: IP69K
• Current Protection: 9-30 VDC, 10 amp continuous power supply

Features

• 20-ft integrated cable
• Smart controller technology
• Compatible with GL-1 series injectors
• Bluetooth-enabled connectivity
• Easy-to-read high-contrast screen
• Real-time system reporting

Applications

• Industrial lubrication systems
• Automated lubrication control
• Equipment maintenance systems
• Heavy-duty earth-moving machines
• Extreme work environments
• Automatic lubrication system control

Compatible Equipment

• GL-1 injectors
• GL-1 SST injectors
• GL-1 X injectors
• GL-1 XL injectors
• GRACO Compact Dyna-Star (CDS) automatic lubrication systems
• Auto Lube mobile app

Related Parts

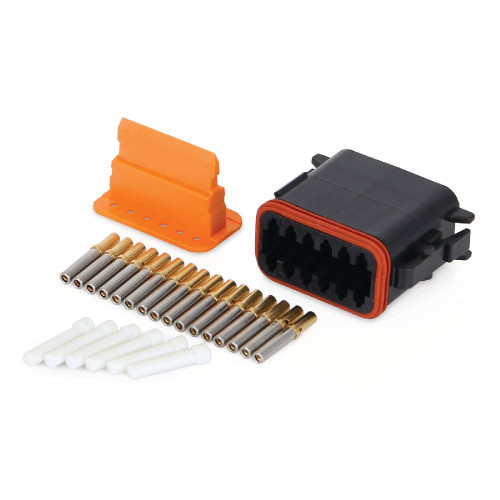

• 26A888 - 14-Pin Amp Seal Kit, Connects to GLC X, Includes Connector, Crimpable Gold 16-20 AWG Sockets, Sealing Plugs
• 26A814 - GLC X controller
• 26A882 - GLC X wiring harness, 12-wire, 6-m (20-ft) with flying leads
• 26A883 - GLC X to CDS 1-m (3-ft) cable
• 26A884 - CDS extension cable, 12-wire, 6-m (20-ft) with flying leads
• 26A853 - GLC X pump simulator

Part of the GLC X Smart controller family, designed to work with the complete GL-1 series injector line Part of the GLC X controller system family designed to work with Compact Dyna-Star lubrication pumps for non-stop productivity in tough industrial applications Manual part number 3A7031. QR code available for quick access to technical information including manuals, guides, and video tutorials.

Reference Manuals

• 300763 (Page 9) Automatic Lubrication
• 352376 (Page 7) LubePro Series Pumps
• 352725 (Page 2) DYNA-STAR® AIR-POWERED PUMP
• 352731 (Page 2) GLC™ X Smart Controller and Auto Lube™ App
