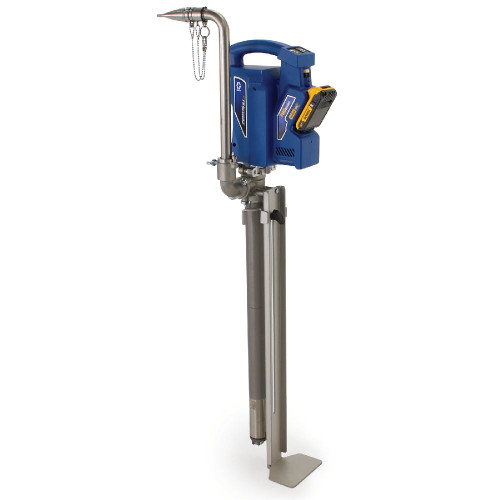

GRACO 26B418 - PowerFill 3.5 Pro Series Cordless Loading Pump, 125 PSI

PowerFill 3.5 Pro Series cordless loading pump designed for professional contractors who need efficient material transfer with precision filling capabilities. Features Hi-Rise Fill Tube with integrated box filter for clean material transfer, PowerStroke pump technology, and adjustable flow control for versatile applications.

Property maintenance pros, remodelers and general contractors turn projects around smarter and faster with the ProX19 Cordless. Cordless freedom + cart versatility coupled with legendary Magnum ProX power tackle rental properties and large interior projects with ease.

The Pro Series line of sprayers are ideal for property and contractor jobs ranging from large residential and rental properties to apartments, townhomes and small commercial buildings. These sprayers are a great solution for improving your efficiency when spraying up to 500 gal. per year. The ProX19 can support to up 150 ft. of paint hose and larger tip sizes for spraying heavier coatings. The ProXChange Pump Replacement System allows you to replace the pump on-the-job with no tools, letting you do more work in less time. You can spray directly from a 1 gal. or 5 gal. bucket with its flexible suction tube and clean up in no time with the PowerFlush adapter.

• Flexibility of Cordless - Cordless freedom powered by DEWALT® + Cart versatility
• Adjustable Pressure - Fully adjustable pressure to give you ultimate control of paint flow for any project size
• Flexible Suction Tube - Allows you to spray directly from a 1 gal. or 5 gal. paint bucket
• DC Motor - Can support up to 150 ft. of paint hose giving you extra reach for your jobs
• Variety of Tip Selections - Supports up to a maximum tip size of 0.019 in.
• TrueAirless Spray Tip - Allows you to reverse the tip when clogged to keep you spraying
• SG3 Metal Spray Gun - Built-in swivel and in-handle filter blocks debris to prevent tip clogs
• PushPrime - Prime button for fast and reliable start-up
• ProX Stainless Steel Piston Pump - Allows you to spray paint unthinned at high pressure
• PowerFlush Adapter - Connects to a garden hose for fast and easy cleaning

Additional Specifications

• Flow Rate: 3.5 GPM (13.2 L/min)
• Max Working Pressure: 125 PSI (0.86 MPa, 8.6 bar) maximum working pressure
• Weight: 17 lbs (7.7 kg)
• Max Gpm: 3.5 (13.2)
• Pump Type: PowerStroke
• Battery: DeWALT 20V MAX COMPACT 2.0 ah Lithium-Ion
• Charger Included: Yes
• Container Fit: 7-15 inch bucket height range
• Charger Voltage: 120V
• Programmable Dosing: Yes
• Backsaver Fill Tube Filter: Yes
• Standard Outlet Box Filter: No
• Battery Compatibility: DEWALT 18 Volt and 20 Volt MAX batteries and chargers
• Approvals: ETL Intertek, Certified to CAN/CSA C22.2 No. 68, Conforms to UL 1450

Model	PowerFill 3.5
Product Series	Pro
Series	Pro Series
Type	Piston Pump Package

Features

• Hi-Rise Fill Tube with integrated box filter
• Precision Fill capability
• Tool-less 10 Mesh inlet filter
• Adjustable flow control
• PowerStroke pump technology
• DeWALT 20V MAX battery system compatibility

Applications

• Material loading and transfer
• Precision filling operations
• Professional contractor applications

Compatible Equipment

• DeWALT 20V MAX battery system
• Containers with 7-15 inch bucket height range
• DEWALT 18 Volt batteries
• DEWALT 20 Volt MAX batteries
• DEWALT chargers
• PowerFill 3.5 Pro Series

Related Parts

• 26B417 - PowerFill 3.5 Standard Series
• 26B419 - PowerFill 3.5 XL Pro Series
• 26B435 - PowerFill 3.5 Standard Series (230V)
• 26B436 - PowerFill 3.5 Pro Series (230V)
• 26B437 - PowerFill 3.5 XL Pro Series (230V)
• 26B537

Kit Contents

• 26B418 - PowerFill 3.5 Pro Series pump
• DeWALT 20V MAX COMPACT 2.0 ah Lithium-Ion Battery
• DeWALT Charger
• Hi-Rise Fill Tube with box filter

Part of the PowerFill 3.5 series with three model options. Pro Series includes precision fill capability and Hi-Rise Fill Tube with box filter that the Standard Series lacks. Maximum initial battery voltage is 20 Volts (measured without workload), nominal voltage is 18 Volts. Related manual reference N463494 for Dewalt DCB118 Fast Charger Manual. 26B418 appears to be a Pro Series model that is compatible with various parts including rod/piston extension (18C886), brackets (18C880, 18C883), labels (18D097, 18D098), and safety warning labels (18D148). It's part of the Pro Models series alongside 26B419.

Reference Manuals

• 3J0209EN (Page 2) ENAP-B
• 3A8110 (Page 3) instruction, operation, parts, Powerfill 3.5 standard series, pro series, XL pro series, english
