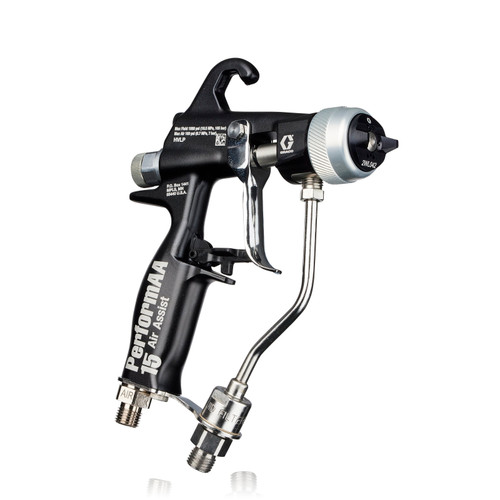

GRACO 26B502 - PerformAA 1500 Air Assist Gun w/ Wood Lacquer air cap & light trigger pull
PerformAA Spray Gun designed for top coat applications including wood lacquer and fine finish spraying. Features air assist spray technology with HVLP compliance for high quality finishes. Optimized weight and ergonomics provide operator comfort during extended use.
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
Additional Specifications
- Material: Gun offered with a plastic seat, SST Ball
- Spray Type: Air assist spray
- Compliance: HVLP compliant
- Air Cap Type: general finish
- Air Cap: Wood Lacquer (WL)
- Air Cap Part No: 2WL042
- Trigger Spring: Ultra light trigger spring
- Spray Tip: Includes AXM or AXF spray tip
- Seat Material: Carbide seat and carbide ball
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Compatible Material | Lacquer, Varnish, Latex, Plural Component Materials, Solventborne, Solventborne Paints, Topcoats |
| Compatible Spray Tip | AXM, AXF |
| Feed Type | Pressure Feed |
| Fluid Adjustment Knob | Clicking |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Air-Assisted Gun |
| Gun Weight (lb) | 1 |
| Gun Weight (oz) | 16 |
| Gun Weight with Tip and Guard (oz) | 17.1 |
| Gun Weight without Tip and Guard (oz) | 16.2 |
| Includes | Carbide Seat/Ball, Indexing Air Cap, Tip of Choice, Tool Kit |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 10.5 |
| Maximum Fluid Pressure (psi) | 1500 |
| Maximum Fluid Temperature (°F) | 110 |
| Model | PerformAA 15 |
| Overall Height (in) | 8.2 |
| Overall Length (in) | 6 |
| Product Type | Spray Gun |
| Sound Power Level (dB(A)) | 72.3 |
| Sound Pressure Level (dB(A)) | 62.6 |
| Spray Pattern | Flat |
| Spray Type | Air-Assisted |
| Technology Type | N/A |
| Trigger Lock | Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer |
Features
- Air assist spray technology
- HVLP compliant
- Wood lacquer air cap and fine finish spray tips for high quality finish
- Optimized weight and ergonomics for operator comfort
- Medium pressure equipment suitable for mil thickness requirements
- Air assist technology for improved atomization
Applications
- Top coat applications
- Wood lacquer spraying
- Fine finish spray applications
- High quality finishing work
- General finishing applications
- Professional spray finishing
Compatible Equipment
- PerformAA 15 Air Assist Gun platform
Related Parts
Kit Contents
- AXM or AXF spray tip
- 100 mesh inline fluid filter
- Carbide seat
- Carbide ball
- 2WL042 - Wood Lacquer air cap
Available in 5000 PSI version with swivel (26B512). Part of the PerformAA spray gun family designed for optimal flow rates while maximizing transfer efficiency and increasing productivity. Part of the PerformAA air cap system. Related brochure form # 345178 available for more PerformAA information. This model does not include fluid swivel connector. Available with connector as part number 26B503.
