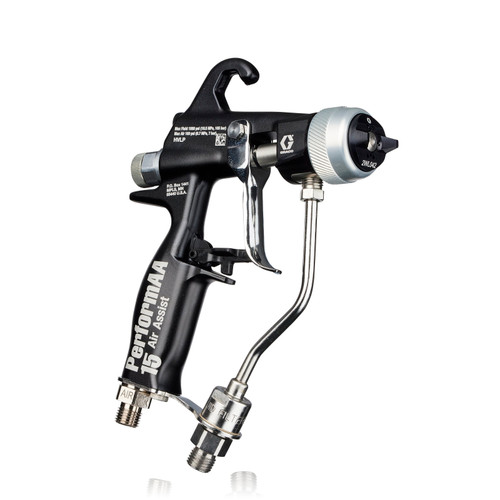

GRACO 26B503 - PerformAA 1500 Air Assist Gun w/ Wood Lacquer air cap, light trigger pull & fluid swivel, Carbide, 1500 PSI
PerformAA 15 Air Assist Gun designed for wood lacquer applications with enhanced performance features including ultra light trigger pull and fluid swivel connector for improved operator comfort and productivity
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
Additional Specifications
- Max Working Pressure: 1500 PSI (10.5, 105 bar)
- Material: carbide
- Air Cap: Wood Lacquer (WL)
- Air Cap Part No: 2WL042
- Finish: WL
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Compatible Material | Lacquer, Varnish, Latex, Plural Component Materials, Solventborne, Solventborne Paints, Topcoats |
| Compatible Spray Tip | AXM, AXF |
| Feed Type | Pressure Feed |
| Fluid Adjustment Knob | Clicking |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Air-Assisted Gun |
| Gun Weight (lb) | 1 |
| Gun Weight (oz) | 16 |
| Gun Weight with Tip and Guard (oz) | 17.1 |
| Gun Weight without Tip and Guard (oz) | 16.2 |
| Includes | Carbide Seat/Ball, Indexing Air Cap, Tip of Choice, Tool Kit |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 10.5 |
| Maximum Fluid Pressure (psi) | 1500 |
| Maximum Fluid Temperature (°F) | 110 |
| Model | PerformAA 15 |
| Overall Height (in) | 8.2 |
| Overall Length (in) | 6 |
| Product Type | Spray Gun |
| Sound Power Level (dB(A)) | 72.3 |
| Sound Pressure Level (dB(A)) | 62.6 |
| Spray Pattern | Flat |
| Spray Type | Air-Assisted |
| Technology Type | N/A |
| Trigger Lock | Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer |
Features
- Air assist technology
- Wood lacquer optimized
- Superior atomization
- Professional finish quality
- Ultra light trigger spring for reduced operator fatigue
- Includes fluid swivel connector for improved maneuverability
Applications
- Wood lacquer spraying
- Professional finishing
- Furniture coating
- Cabinet finishing
- Wood lacquer finishing
- Fine finish applications
Compatible Equipment
- Airless spray systems
- Air spray systems with air assist capability
- PerformAA spray systems
- G15C17 - 15:1 Merkur AA Package, 0.4 gpm fluid flow, Cart Mount, PerformAA 15 Wood Lacquer Gun, Pump/Gun Air Controls, Gun Air/Fluid Hose, Fluid Filter
- G15W11 - 15:1 Merkur AA Package, 0.4 gpm fluid flow, Wall Mount, PerformAA 15 Wood Lacquer Gun, Pump/Gun Air Controls, Gun Air/Fluid Hose
Related Parts
Kit Contents
- AXM or AXF spray tip
- 100 mesh inline fluid filter
- Carbide seat
- Carbide ball
- 2WL042 - Wood Lacquer air cap
- Fluid swivel connector
Part of the PerformAA spray gun family. Note states 'Refer to the spray gun brochure for additional model numbers. All guns include tip of choice.' Part of the PerformAA 15 series with Performance Above All design philosophy. This model specifically includes the fluid swivel connector and ultra light trigger spring features. Part of the G15xxx Models series. Related to part 26B501 which is for all G15xxx models except G15C15, G15C17, G15W11, and G15W13
