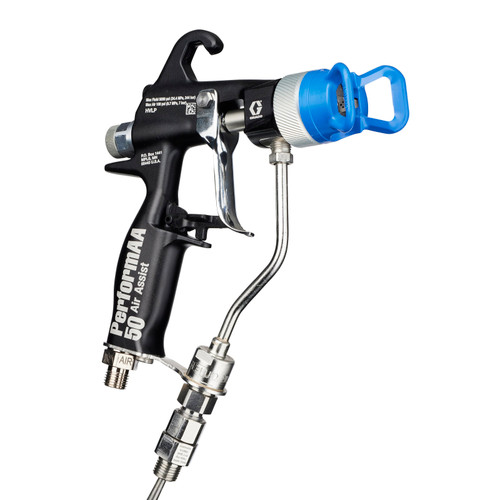

GRACO 26B512 - PerformAA 5000 Air Assist Gun w/ Wood Lacquer air cap & fluid swivel, Carbide seat
PerformAA 50 Air Assist Gun designed for wood lacquer applications, delivering performance above all expectations with professional spray finishing capabilities. Features carbide seat and ball construction for durability and includes fluid swivel connector for enhanced maneuverability.
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Compatible Material | Lacquer, Varnish, Latex, Plural Component Materials, Solventborne, Solventborne Paints, Topcoats |
| Compatible Spray Tip | AXM, AXF |
| Feed Type | Pressure Feed |
| Fluid Adjustment Knob | Clicking |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Air-Assisted Gun |
| Gun Weight (lb) | 1 |
| Gun Weight (oz) | 16 |
| Gun Weight with Tip and Guard (oz) | 17.4 |
| Gun Weight without Tip and Guard (oz) | 16.2 |
| Includes | Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 34.5 |
| Maximum Fluid Pressure (psi) | 5000 |
| Maximum Fluid Temperature (°F) | 110 |
| Model | PerformAA 50 |
| Overall Height (in) | 8.2 |
| Overall Length (in) | 6.8 |
| Product Type | Spray Gun |
| Sound Power Level (dB(A)) | 72.3 |
| Sound Pressure Level (dB(A)) | 62.6 |
| Spray Pattern | Flat |
| Spray Type | Air-Assisted |
| Technology Type | N/A |
| Trigger Lock | Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
This is a 5000 PSI variant with swivel of the PerformAA Spray Gun (26B502). The swivel feature provides enhanced operator comfort and maneuverability during spraying operations. Part of the PerformAA 50 Air Assist Gun Models series with maximum working fluid pressure of 5000 PSI High-pressure gun model with fluid swivel connector included (indicated by ? mark in table)
Reference Manuals
