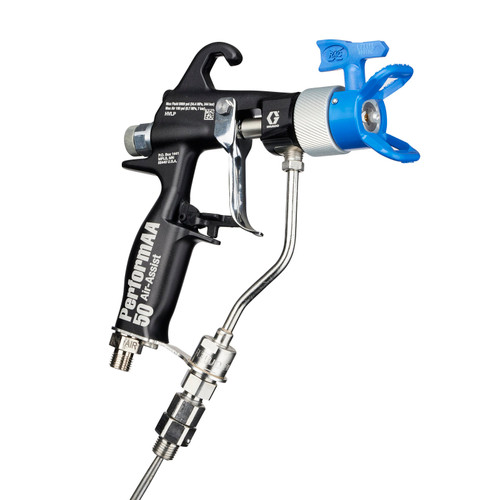

GRACO 26B517 - PerformAA 5000 RAC Air Assist Gun w/ Reverse A Clean air cap & spray tip, 5000 PSI
PerformAA RAC Air Assist Gun designed for professional finishing applications with reverse-a-clean (RAC) capability for easy tip cleaning and maintenance. Features maximum working fluid pressure of 5000 PSI for high-performance coating applications.
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
Additional Specifications
- Max Working Pressure: 5000 PSI (34.5, 345 bar)
- Material: carbide seat/ball
- Air Cap: Reverse-a-Clean® (RAC)
- Air Cap Part No: 26B869
- Maximum Working Fluid Pressure: 5000 PSI (34.5, 345)
- Air Gap Assembly: 26B869
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Compatible Material | Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Solventborne Paints, Urethane, UV Coating, Varnish |
| Compatible Spray Tip | FFLP, LTX |
| Feed Type | Pressure Feed |
| Fluid Adjustment Knob | N/A |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Air-Assisted Gun |
| Gun Weight (lb) | 1 |
| Gun Weight (oz) | 16 |
| Gun Weight with Tip and Guard (oz) | 17.4 |
| Gun Weight without Tip and Guard (oz) | 16.2 |
| Includes | Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 34.5 |
| Maximum Fluid Pressure (psi) | 5000 |
| Maximum Fluid Temperature (°F) | 110 |
| Model | PerformAA RAC |
| Overall Height (in) | 7.8 |
| Overall Length (in) | 7.2 |
| Product Type | Spray Gun |
| Sound Power Level (dB(A)) | 72.3 |
| Sound Pressure Level (dB(A)) | 62.6 |
| Spray Pattern | Flat |
| Spray Type | Air-Assisted |
| Technology Type | N/A |
| Trigger Lock | Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer |
Features
- Reverse-a-Clean (RAC) tip technology for easy maintenance
- High pressure rating up to 5000 PSI
- Air assist technology for superior atomization
- Choice of FFLP or LTX RAC Switch Tips
- Includes AXM or AXF spray tip
- 100 mesh inline fluid filter included
Applications
- Professional finishing applications
- High-pressure coating systems
- Industrial spray applications
Compatible Equipment
- FFLP RAC Switch Tips
- LTX RAC Switch Tips
- RAC Air Assist applications
Related Parts
- 26B518 - PerformAA RAC with fluid swivel connector
- 26B869 - RAC air cap
- 26B518
- 26B869
Kit Contents
- AXM or AXF spray tip
- 100 mesh inline fluid filter
- Carbide seat and carbide ball
- carbide seat/ball
- choice of LTX or FFLP RAC SwitchTip
Does not include fluid swivel connector. Model 26B518 includes the fluid swivel connector. High-pressure gun model in the PerformAA™ RAC Air Assist Gun series. Uses air gap assembly 26B869. Question mark in manual indicates uncertain inclusion of fluid swivel connector.
