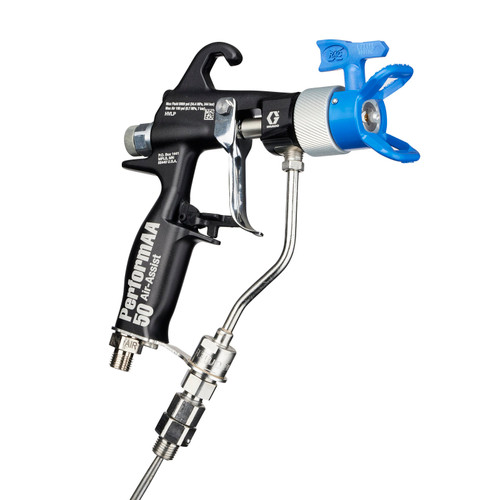

GRACO 26B518 - PerformAA 5000 RAC Air Assist Gun w/ Reverse A Clean air cap & spray tip & fluid swivel, 5000 PSI
PerformAA RAC Air Assist Gun designed for high-performance spray applications with reverse-a-clean capability. Features maximum working fluid pressure of 5000 PSI (34.5, 345 bar) and includes fluid swivel connector for enhanced maneuverability and professional finishing results.
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
Additional Specifications
- Max Working Pressure: 5000 PSI (34.5, 345 bar)
- Air Cap: Reverse-a-Clean (RAC)
- Air Cap Part No: 26B869
- Includes Fluid Swivel: Yes
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Compatible Material | Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Solventborne Paints, Urethane, UV Coating, Varnish |
| Compatible Spray Tip | FFLP, LTX |
| Feed Type | Pressure Feed |
| Fluid Adjustment Knob | N/A |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Air-Assisted Gun |
| Gun Weight (lb) | 1 |
| Gun Weight (oz) | 16 |
| Gun Weight with Tip and Guard (oz) | 17.4 |
| Gun Weight without Tip and Guard (oz) | 16.2 |
| Includes | Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 34.5 |
| Maximum Fluid Pressure (psi) | 5000 |
| Maximum Fluid Temperature (°F) | 110 |
| Model | PerformAA RAC |
| Overall Height (in) | 7.8 |
| Overall Length (in) | 7.2 |
| Product Type | Spray Gun |
| Sound Power Level (dB(A)) | 72.3 |
| Sound Pressure Level (dB(A)) | 62.6 |
| Spray Pattern | Flat |
| Spray Type | Air-Assisted |
| Technology Type | N/A |
| Trigger Lock | Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer |
Features
- Reverse-a-Clean (RAC) air cap technology
- High pressure rating up to 5000 PSI
- Includes fluid swivel connector for improved handling
- Choice of FFLP or LTX RAC Switch Tips
- AXM or AXF spray tip included
- 100 mesh inline fluid filter included
Applications
- Professional spray finishing
- High-pressure fluid applications
- Reversible tip cleaning applications
Compatible Equipment
- FFLP RAC Switch Tips
- LTX RAC Switch Tips
- G18xxx Models
- G23xxx Models
Related Parts
- 26B517
- 26B869
- 26B511
- XTR501 - XTR 5
- 26B511 - PerformAA 50
Kit Contents
- 26B869 - Reverse-a-Clean (RAC) air cap
- AXM or AXF spray tip
- 100 mesh inline fluid filter
- Carbide seat and carbide ball
- Fluid swivel connector
Part of the PerformAA RAC Air Assist Gun Models series with reverse-a-clean capability for easy tip maintenance This is reference #11 in the parts list. Related to part 26B511 which is 'GUN, PerformAA 50'. Both are PerformAA gun variants for G18xxx model packages. This is listed as part of the GUN section in the G23xxx Models parts list. Reference number 10 in the table.
