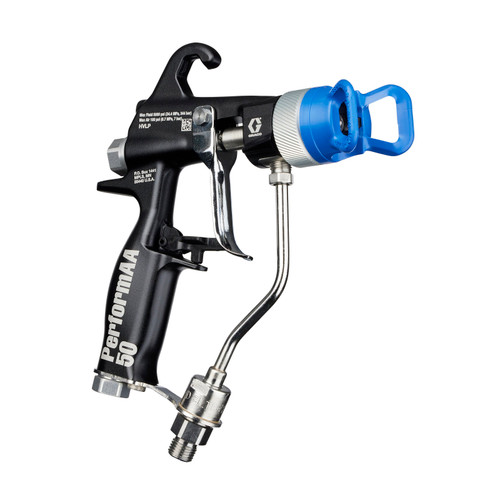

GRACO 26B520 - PerformAA 5000 Airless Gun, Carbide seat, 5000 PSI
PerformAA Airless spray gun designed for high-pressure airless applications up to 5000 PSI. Features carbide seat and carbide ball construction for durability. Includes AXM or AXF spray tip, 100 mesh inline fluid filter for consistent finish quality.
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Compatible Material | Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Solventborne Paints, Urethane, UV Coating, Varnish |
| Compatible Spray Tip | AXM, AXF |
| Feed Type | Pressure Feed |
| Fluid Adjustment Knob | N/A |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Airless Gun |
| Gun Weight (lb) | 1 |
| Gun Weight (oz) | 16 |
| Gun Weight with Tip and Guard (oz) | 17.4 |
| Gun Weight without Tip and Guard (oz) | 16.2 |
| Includes | Carbide Seat, Tip Guard, Tip of Choice, Tool Kit |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 34.5 |
| Maximum Fluid Pressure (psi) | 5000 |
| Maximum Fluid Temperature (°F) | 110 |
| Model | PerformAA 50 Airless |
| Overall Height (in) | 8.2 |
| Overall Length (in) | 6.8 |
| Product Type | Spray Gun |
| Sound Power Level (dB(A)) | 72.3 |
| Sound Pressure Level (dB(A)) | 62.6 |
| Spray Pattern | Flat |
| Spray Type | Airless |
| Technology Type | N/A |
| Trigger Lock | Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Limited product information available on this catalog page. Part is listed in spray guns section as Pro XpRS AA Airless model. Page note indicates to 'Refer to the spray gun brochure for additional model numbers' and 'All guns include tip of choice.' Part of the PerformAA gun family. Reference brochure form # 345178 for more PerformAA information. Part of the PerformAA gun family with 'Performance Above All' design philosophy. Higher pressure rating model in the airless gun series.
