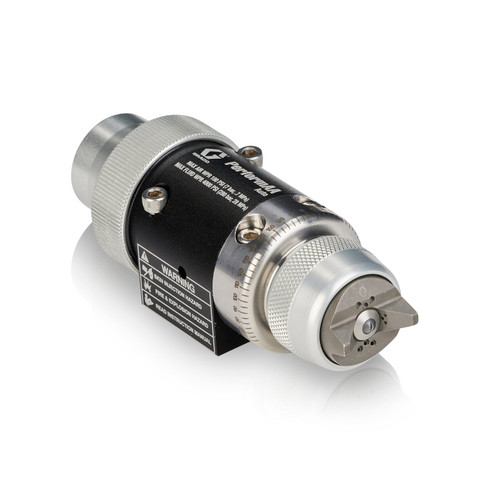

GRACO 26B570 - PerformAA Auto Air Assist Spray Gun w/ General Finishing (GF) air cap
General Finishing Gun designed to optimize your performance. This complete spray gun kit includes General Finishing Air Cap, carbide needle/ball and carbide seat for reliable, long-lasting performance in general finishing applications.
Automatic air-assisted spray gun delivers performance above all for all general finishing needs.
Additional Specifications
- Material: carbide needle/ball and carbide seat
- Precision Spray Tip: AXP precision spray tip of choice (specified when ordered)
- Air Cap: General Finishing (GF)
- Air Cap Part No: 2GF042
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Automatic |
| Bleed Type | Bleeder |
| Body Material | Metal |
| Compatible Material | Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Urethane, UV Coating, Varnish |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Automatic |
| Gun Type | Air-Assisted Gun |
| Gun Weight (lb) | 1.2 |
| Gun Weight (oz) | 19.2 |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (psi) | 4000 |
| Maximum Fluid Temperature (°F) | 120 |
| Overall Height (in) | 3 |
| Overall Length (in) | 5.3 |
| Overall Width (in) | 2 |
| Product Type | Spray Gun |
| Purge Method | Air |
| Series | Auto |
| Sound Power Level (dB(A)) | 91.9 |
| Sound Pressure Level (dB(A)) | 91.75 |
| Spray Type | Air-Assisted |
| Type | Spray Gun |
Features
- Includes General Finishing Air Cap
- Carbide needle/ball for durability
- Carbide seat for long life
- AXP precision spray tip selection available
- Made to optimize performance
Applications
- General finishing applications
- Precision spraying
Compatible Equipment
- 288217 - North America Manifold w/ Side Fluid Ports Manifold, Gun Manifolds (sold separately)
Related Parts
- 26B571 - Lacquer Gun
- 26B572 - Acid Catalyst
- 26B573 - Reverse-A-Clean (RAC) Gun
- 26B574 - Thin Materials
- 26B575 - Waterborne Gun
- 26B576 - Quick Dry Gun
- 26B577 - High Viscosity Gun
Kit Contents
- General Finishing Air Cap
- Carbide needle/ball
- Carbide seat
- AXP precision spray tip (of choice, specified when ordered)
- carbide seat and ball
- indexing air cap
- choice of AXP spray tip
AXP precision spray tip of choice is specified when ordered Model 26B570 Spray Gun shown mounted on Model 288217 Manifold in the illustration. This appears to be part of the PerformAA Auto Air Assist Spray Gun system with maximum working fluid pressure of 4000 PSI (28 MPa, 280 bar) and maximum working air pressure of 100 PSI (0.7 MPa, 7 bar). Gun includes carbide seat and ball, indexing air cap, and choice of AXP spray tip (unless otherwise noted). A manifold is required to install and operate the spray gun. Manifolds are sold separately.
Reference Manuals
- 345179 (Page 4) 345179 PerformAA Auto Automatic Air-Assisted Spray Guns
- 3A8553 (Page 1) PerformAA™ Auto Air Assist Spray Guns
