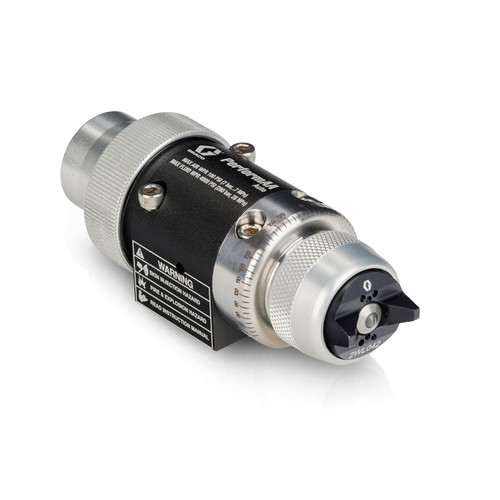

GRACO 26B571 - PerformAA Auto Air Assist Spray Gun w/ Wood Lacquer (WL) air cap
PerformAA Auto Air Assist Spray Gun designed for top coat applications requiring high quality finishes. Features air assist spray technology with HVLP compliance for optimal flow rates while maximizing transfer efficiency and increasing productivity. Includes wood lacquer air cap and fine finish spray tips for superior finishing results.
Automatic air-assisted spray gun delivers performance above all when spraying wood lacquer.
Additional Specifications
- Material: carbide needle/ball and carbide seat
- Spray Type: Air assist spray
- Compliance: HVLP compliant
- Spray Tip: AXP precision spray tip (specified when ordered)
- Air Cap Type: Lacquer (WL)
- Air Cap Part Number: 2WL042
- Includes: carbide seat and ball, indexing air cap, and choice of AXP spray tip
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Automatic |
| Bleed Type | Bleeder |
| Body Material | Metal |
| Compatible Material | Lacquer, Latex, Plural Component Materials, Solventborne, Topcoats, Varnish |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Automatic |
| Gun Type | Air-Assisted Gun |
| Gun Weight (lb) | 1.2 |
| Gun Weight (oz) | 19.2 |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (psi) | 4000 |
| Maximum Fluid Temperature (°F) | 120 |
| Overall Height (in) | 3 |
| Overall Length (in) | 5.3 |
| Overall Width (in) | 2 |
| Product Type | Spray Gun |
| Purge Method | Air |
| Series | Auto |
| Sound Power Level (dB(A)) | 91.9 |
| Sound Pressure Level (dB(A)) | 91.75 |
| Spray Type | Air-Assisted |
| Type | Spray Gun |
Features
- Air assist spray technology
- HVLP compliant for transfer efficiency
- Up to 4000 PSI pressure capability
- Air cap alignment index marks for pattern placement repeatability
- Wood lacquer air cap and fine finish spray tips included
- Designed for high quality finish applications
Applications
- Top coat applications
- Wood lacquer finishing
- Fine finish spray applications
- High quality finishing work
- Lacquer finishing
- Wood finishing
Compatible Equipment
- Medium pressure equipment
- Air assist spray systems
- AXP precision spray tips
- Requires manifold for installation and operation
Related Parts
Kit Contents
- Wood lacquer air cap
- Fine finish spray tips
- Lacquer Air Cap
- Carbide needle/ball
- Carbide seat
- AXP precision spray tip (specified when ordered)
- carbide seat and ball
- indexing air cap
- choice of AXP spray tip
- 2WL042 air cap
GRACO gauge air cap alignment tool (26B736) available to quickly reset exact cap orientation for consistent spray patterns AXP precision spray tip of choice is specified when ordered - allows customization for specific application requirements Gun includes carbide seat and ball, indexing air cap, and choice of AXP spray tip (unless otherwise noted). A manifold is required to install and operate the spray gun. Manifolds are sold separately. See Gun Manifolds, page 37.
