Item #: 26B574
Price: $1,851.89
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

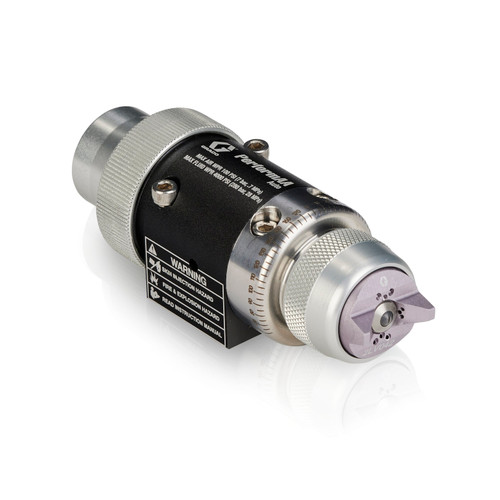

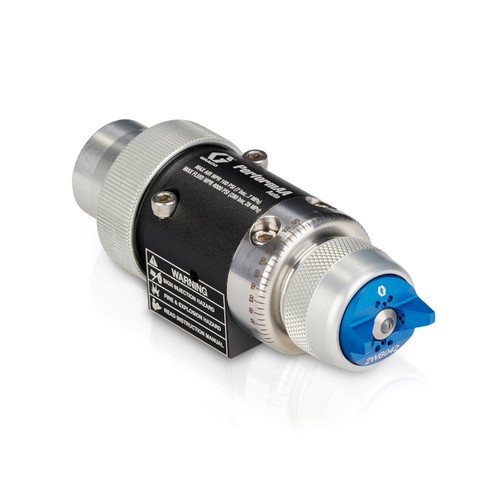

GRACO 26B574 - PerformAA Auto Air Assist Spray Gun w/ Low Viscosity (LV) air cap
Thin Materials spray gun designed for low viscosity coatings, includes Thin Materials Air Cap with carbide needle/ball and carbide seat for durability and precision. AXP precision spray tip of choice is specified when ordered for optimal performance.
Automatic air-assisted spray gun delivers performance above all when spraying low viscosity material.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Automatic |
| Bleed Type | Bleeder |
| Body Material | Metal |
| Compatible Material | Stains, Sealer, Solventborne, Toner |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Automatic |
| Gun Type | Air-Assisted Gun |
| Gun Weight (lb) | 1.2 |
| Gun Weight (oz) | 19.2 |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (psi) | 4000 |
| Maximum Fluid Temperature (°F) | 120 |
| Overall Height (in) | 3 |
| Overall Length (in) | 5.3 |
| Overall Width (in) | 2 |
| Product Type | Spray Gun |
| Purge Method | Air |
| Series | Auto |
| Sound Power Level (dB(A)) | 91.9 |
| Sound Pressure Level (dB(A)) | 91.75 |
| Spray Type | Air-Assisted |
| Type | Spray Gun |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of the complete gun model lineup designed to optimize performance for specific coating types Gun includes carbide seat and ball, indexing air cap, and choice of AXP spray tip (unless otherwise noted). A manifold is required to install and operate the spray gun. Manifolds are sold separately. See Gun Manifolds, page 37. This is an air cap assembly specifically designed for low viscosity materials. Part of a family of air cap assemblies for different spray gun models with various viscosity requirements.
Reference Manuals
GRACO 26B574 - PerformAA Auto Air Assist Spray Gun w/ Low Viscosity (LV) air cap
Thin Materials spray gun designed for low viscosity coatings, includes Thin Materials Air Cap with carbide needle/ball and carbide seat for durability and precision. AXP precision spray tip of choice is specified when ordered for optimal performance.
Automatic air-assisted spray gun delivers performance above all when spraying low viscosity material.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Automatic |
| Bleed Type | Bleeder |
| Body Material | Metal |
| Compatible Material | Stains, Sealer, Solventborne, Toner |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Automatic |
| Gun Type | Air-Assisted Gun |
| Gun Weight (lb) | 1.2 |
| Gun Weight (oz) | 19.2 |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (psi) | 4000 |
| Maximum Fluid Temperature (°F) | 120 |
| Overall Height (in) | 3 |
| Overall Length (in) | 5.3 |
| Overall Width (in) | 2 |
| Product Type | Spray Gun |
| Purge Method | Air |
| Series | Auto |
| Sound Power Level (dB(A)) | 91.9 |
| Sound Pressure Level (dB(A)) | 91.75 |
| Spray Type | Air-Assisted |
| Type | Spray Gun |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of the complete gun model lineup designed to optimize performance for specific coating types Gun includes carbide seat and ball, indexing air cap, and choice of AXP spray tip (unless otherwise noted). A manifold is required to install and operate the spray gun. Manifolds are sold separately. See Gun Manifolds, page 37. This is an air cap assembly specifically designed for low viscosity materials. Part of a family of air cap assemblies for different spray gun models with various viscosity requirements.
Reference Manuals
