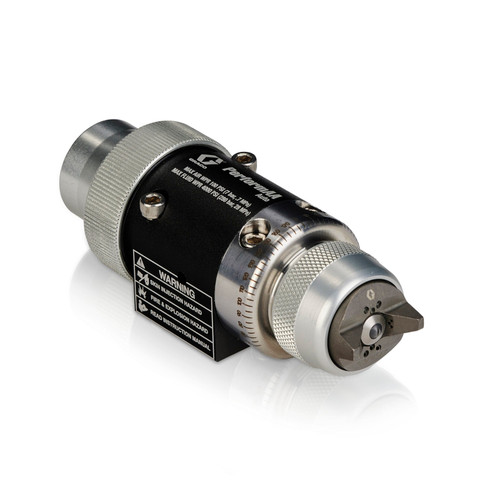

GRACO 26B576 - PerformAA Auto Air Assist Spray Gun w/ Quick Drying (QD) air cap
Quick Dry Gun designed for fast-drying applications, includes Quick Dry Air Cap with carbide needle/ball and carbide seat for enhanced durability and precision. Features AXP precision spray tip technology for optimal performance.
Automatic air-assisted spray gun delivers performance above all when spraying quick drying material.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Automatic |
| Bleed Type | Bleeder |
| Body Material | Metal |
| Compatible Material | Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Urethane, UV Coating, Varnish |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Automatic |
| Gun Type | Air-Assisted Gun |
| Gun Weight (lb) | 1.2 |
| Gun Weight (oz) | 19.2 |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (psi) | 4000 |
| Maximum Fluid Temperature (°F) | 120 |
| Overall Height (in) | 3 |
| Overall Length (in) | 5.3 |
| Overall Width (in) | 2 |
| Product Type | Spray Gun |
| Purge Method | Air |
| Series | Auto |
| Sound Power Level (dB(A)) | 91.9 |
| Sound Pressure Level (dB(A)) | 91.75 |
| Spray Type | Air-Assisted |
| Type | Spray Gun |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of GRACO's gun model lineup optimized for performance. Spray tip choice must be specified when ordering. Gun includes carbide seat and ball, indexing air cap, and choice of AXP spray tip (unless otherwise noted). A manifold is required to install and operate the spray gun. Manifolds are sold separately. See Gun Manifolds, page 37. This is an air cap assembly specifically designed for quick drying applications. It's part of item 30 which shows various air cap assembly options for different spray applications.
Reference Manuals
GRACO 26B576 - PerformAA Auto Air Assist Spray Gun w/ Quick Drying (QD) air cap
Quick Dry Gun designed for fast-drying applications, includes Quick Dry Air Cap with carbide needle/ball and carbide seat for enhanced durability and precision. Features AXP precision spray tip technology for optimal performance.
Automatic air-assisted spray gun delivers performance above all when spraying quick drying material.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Automatic |
| Bleed Type | Bleeder |
| Body Material | Metal |
| Compatible Material | Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Urethane, UV Coating, Varnish |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Automatic |
| Gun Type | Air-Assisted Gun |
| Gun Weight (lb) | 1.2 |
| Gun Weight (oz) | 19.2 |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (psi) | 4000 |
| Maximum Fluid Temperature (°F) | 120 |
| Overall Height (in) | 3 |
| Overall Length (in) | 5.3 |
| Overall Width (in) | 2 |
| Product Type | Spray Gun |
| Purge Method | Air |
| Series | Auto |
| Sound Power Level (dB(A)) | 91.9 |
| Sound Pressure Level (dB(A)) | 91.75 |
| Spray Type | Air-Assisted |
| Type | Spray Gun |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of GRACO's gun model lineup optimized for performance. Spray tip choice must be specified when ordering. Gun includes carbide seat and ball, indexing air cap, and choice of AXP spray tip (unless otherwise noted). A manifold is required to install and operate the spray gun. Manifolds are sold separately. See Gun Manifolds, page 37. This is an air cap assembly specifically designed for quick drying applications. It's part of item 30 which shows various air cap assembly options for different spray applications.
Reference Manuals
